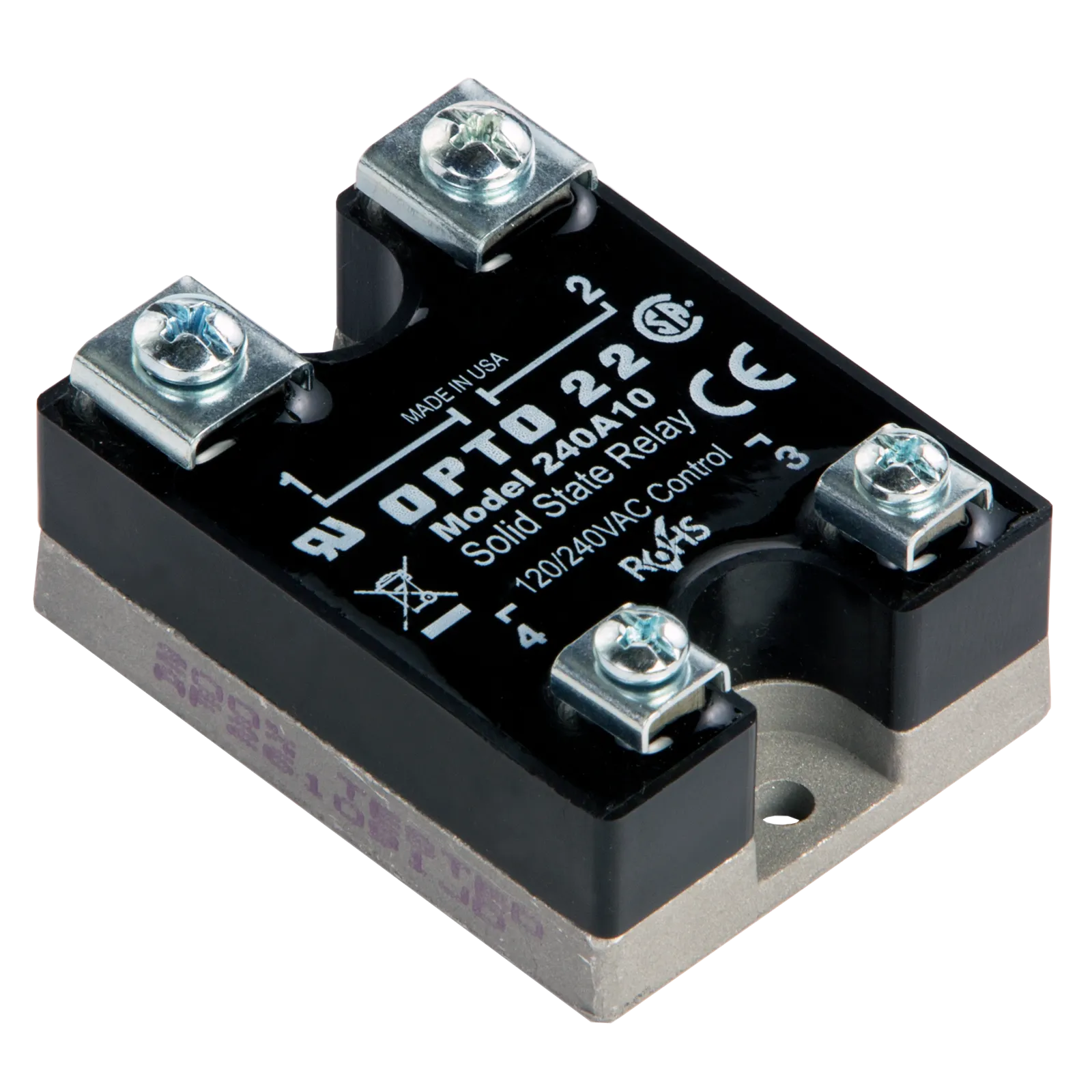

240 VAC, 10 Amp, AC Control Solid State Relay (SSR)

240 VAC, 10 Amp, AC Control Solid State Relay (SSR)

€ 0,00

The 240A10 is an AC-controlled Power Series relay that switches 240 VAC at up to 10 A.
Power Series relays provide 4000 volts of isolation between input and output, and offer zero-voltage turn-on and zero-current turn-off. They are UL and CSA recognized and are a CE component, UKCA certified.
This SSR carries a lifetime warranty.

Out of stock

SKU: 240A10 Categories: , , Brand:

Description

The 240A10 is an AC-controlled Power Series relay that switches 240 VAC at up to 10 A.
Power Series relays provide 4000 volts of isolation between input and output, and offer zero-voltage turn-on and zero-current turn-off. They are UL and CSA recognized and are a CE component, UKCA certified.
This SSR carries a lifetime warranty.

Attachments

Product features

  • Model: Solid State Relay
  • ETIM Code: EC001437
  • ETIM Class: Switching relay
  • Type of electric connection: Screw connection
  • Complete with socket: No
  • With detachable clamps: No
  • With LED indication: No
  • Rated control supply voltage AC 50 Hz: 85 - 280 Volt
  • Rated control supply voltage AC 60 Hz: 85 - 280 Volt
  • Voltage type for actuating: AC
  • Drive, polarization: Polarity free
  • Drive, switching attitude: Mono stable
  • Number of contacts as normally open contact: 1
  • Type of switch contact: Single contact
  • Material contact: Brass
  • Material of contact surface: Nickel
  • Voltage type (operating voltage): AC
  • Operating voltage AC 50 Hz: 24 - 280 Volt
  • Operating voltage AC 60 Hz: 24 - 280 Volt
  • Nominal current: 10 Ampere
  • Max. starting current: 110 Ampere
  • Width: 44.5 mm
  • Height: 57.2 mm
  • Depth: 24.5 mm
  • Variant: 240 Vac

Description

The 240A10 is an AC-controlled Power Series relay that switches 240 VAC at up to 10 A.
Power Series relays provide 4000 volts of isolation between input and output, and offer zero-voltage turn-on and zero-current turn-off. They are UL and CSA recognized and are a CE component, UKCA certified.
This SSR carries a lifetime warranty.
