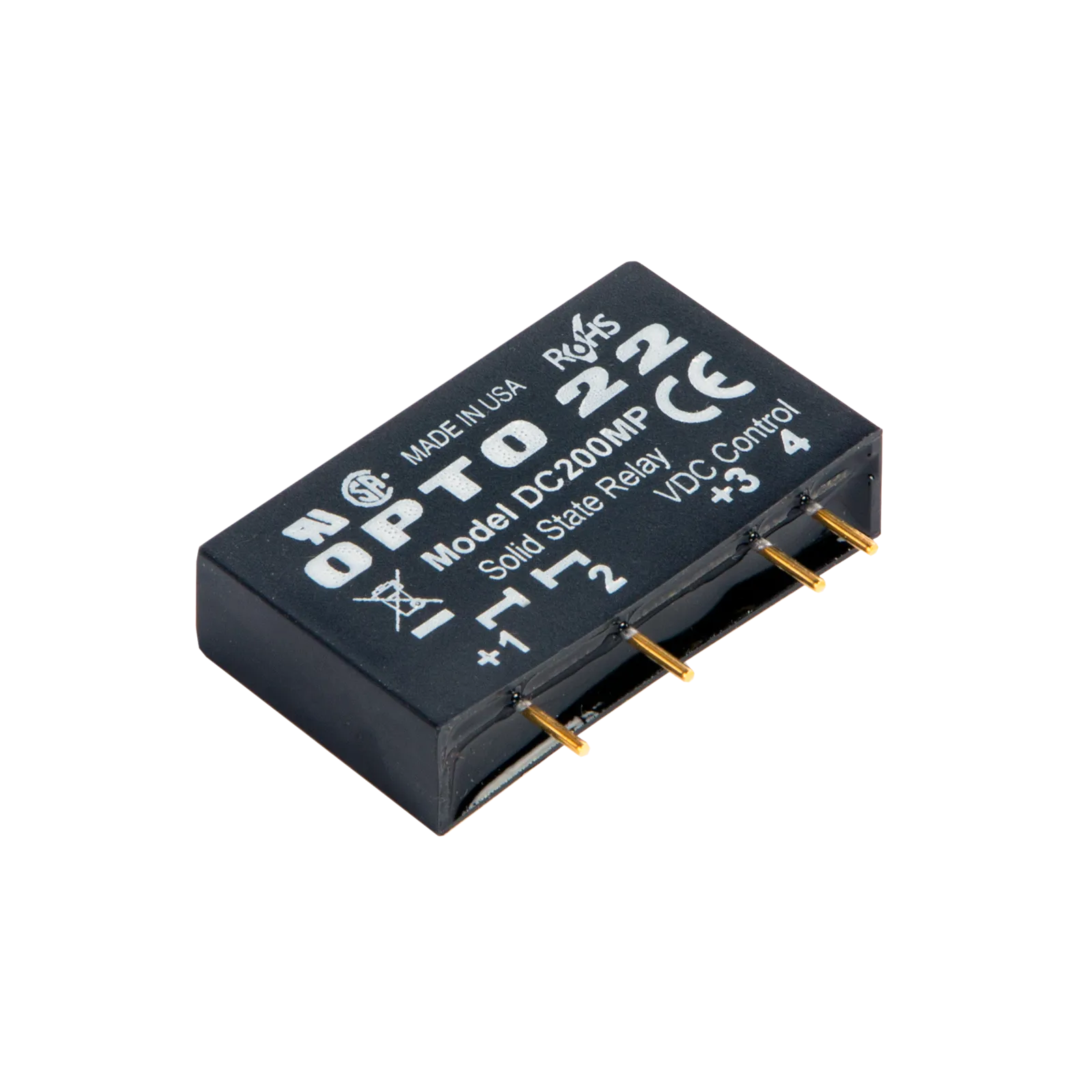

MP Model, 200 VDC, 1 Amp, DC Control Solid State Relay (SSR)

MP Model, 200 VDC, 1 Amp, DC Control Solid State Relay (SSR)

€ 0,00

The DC200MP is a DC-controlled MP Series relay that switches 200 VDC at up to 1 A.
MP Series power relays are designed for OEMs. They offer a minimum footprint to allow maximum relay density on a printed circuit board.
This SSR carries a lifetime warranty.

Out of stock

SKU: DC200MP Categories: , , Brand:

Description

The DC200MP is a DC-controlled MP Series relay that switches 200 VDC at up to 1 A.
MP Series power relays are designed for OEMs. They offer a minimum footprint to allow maximum relay density on a printed circuit board.
This SSR carries a lifetime warranty.

Attachments

Product features

  • Model: Solid State Relay
  • ETIM Code: EC001437
  • ETIM Class: Switching relay
  • Type of electric connection: PCB connection
  • Complete with socket: No
  • With detachable clamps: No
  • With LED indication: No
  • Rated control supply voltage DC: 3 - 24 Volt
  • Voltage type for actuating: DC
  • Drive, polarization: Polarity free
  • Drive, switching attitude: Mono stable
  • Number of contacts as normally open contact: 1
  • Type of switch contact: Single contact
  • Material contact: Brass
  • Material of contact surface: Tin
  • Voltage type (operating voltage): DC
  • Operating voltage DC: 5 - 200 Volt
  • Max. starting current: 2 Ampere
  • Width: 44.5 mm
  • Height: 57.2 mm
  • Depth: 24.5 mm
  • Variant: 200 Vdc

Description

The DC200MP is a DC-controlled MP Series relay that switches 200 VDC at up to 1 A.
MP Series power relays are designed for OEMs. They offer a minimum footprint to allow maximum relay density on a printed circuit board.
This SSR carries a lifetime warranty.

Attachments
