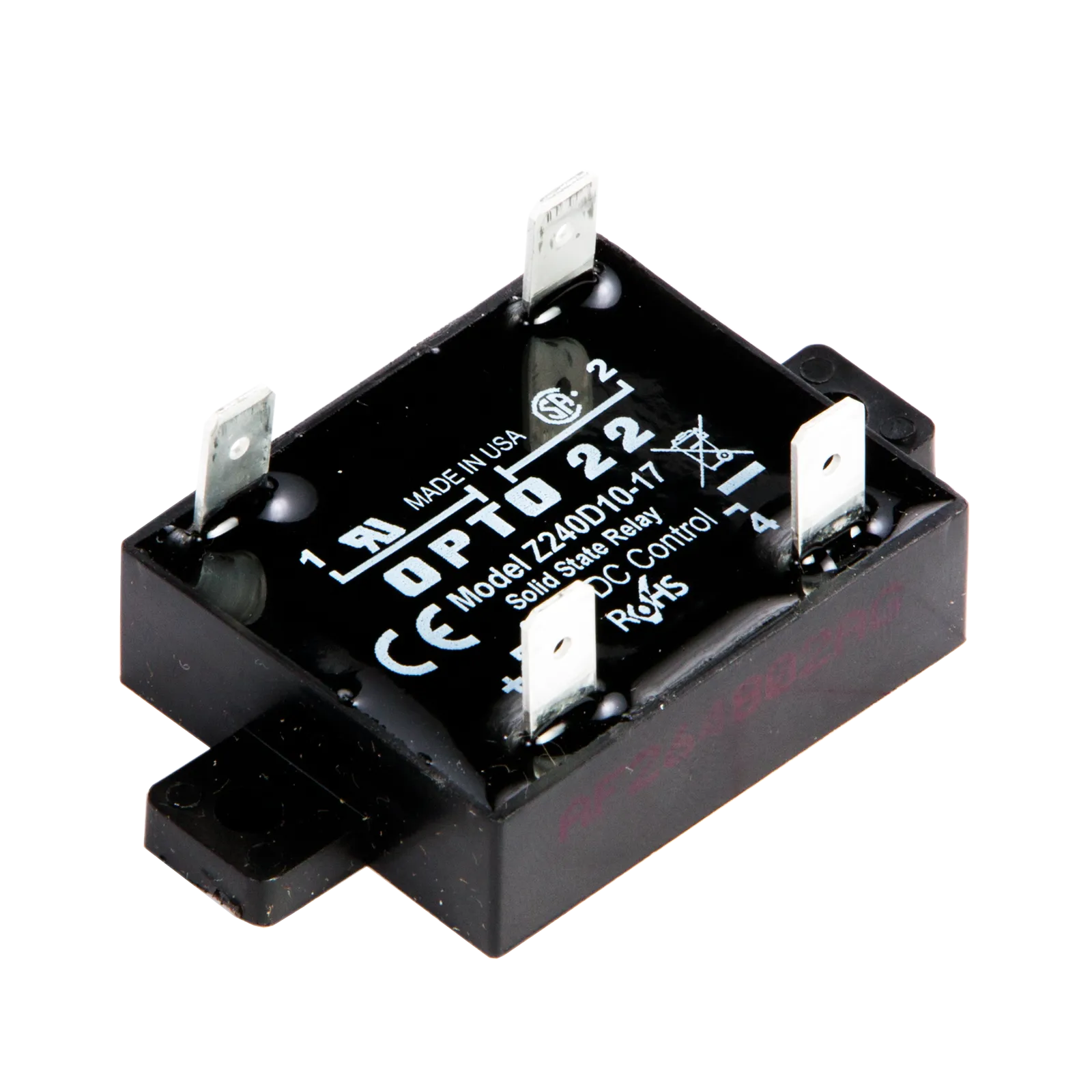

Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR), Replacement Part Only

Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR), Replacement Part Only

€ 0,00

This Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR) should be used as a replacement part only. For new development, use the equivalent Z240D10 SSR instead. The two parts are manufactured identically using the same VDE-approved optocoupler and have identical specifications.
This SSR carries a lifetime warranty.

Out of stock

SKU: Z240D10-17 Categories: , , Brand:

Description

This Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR) should be used as a replacement part only. For new development, use the equivalent Z240D10 SSR instead. The two parts are manufactured identically using the same VDE-approved optocoupler and have identical specifications.
This SSR carries a lifetime warranty.

Attachments

Product features

  • Model: Solid State Relay
  • ETIM Code: EC001437
  • ETIM Class: Switching relay
  • Type of electric connection: Flat plug-in connection
  • Complete with socket: No
  • With detachable clamps: No
  • With LED indication: No
  • Rated control supply voltage DC: 3 - 32 Volt
  • Voltage type for actuating: DC
  • Drive, polarization: Polarity free
  • Drive, switching attitude: Mono stable
  • Number of contacts as normally open contact: 1
  • Type of switch contact: Single contact
  • Material contact: Brass
  • Material of contact surface: Nickel
  • Voltage type (operating voltage): AC
  • Operating voltage AC 50 Hz: 24 - 280 Volt
  • Operating voltage AC 60 Hz: 24 - 280 Volt
  • Nominal current: 10 Ampere
  • Max. starting current: 110 Ampere
  • Width: 38.1 mm
  • Height: 66.6 mm
  • Depth: 23.6 mm
  • Variant: 240 Vac

Description

This Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR) should be used as a replacement part only. For new development, use the equivalent Z240D10 SSR instead. The two parts are manufactured identically using the same VDE-approved optocoupler and have identical specifications.
This SSR carries a lifetime warranty.
