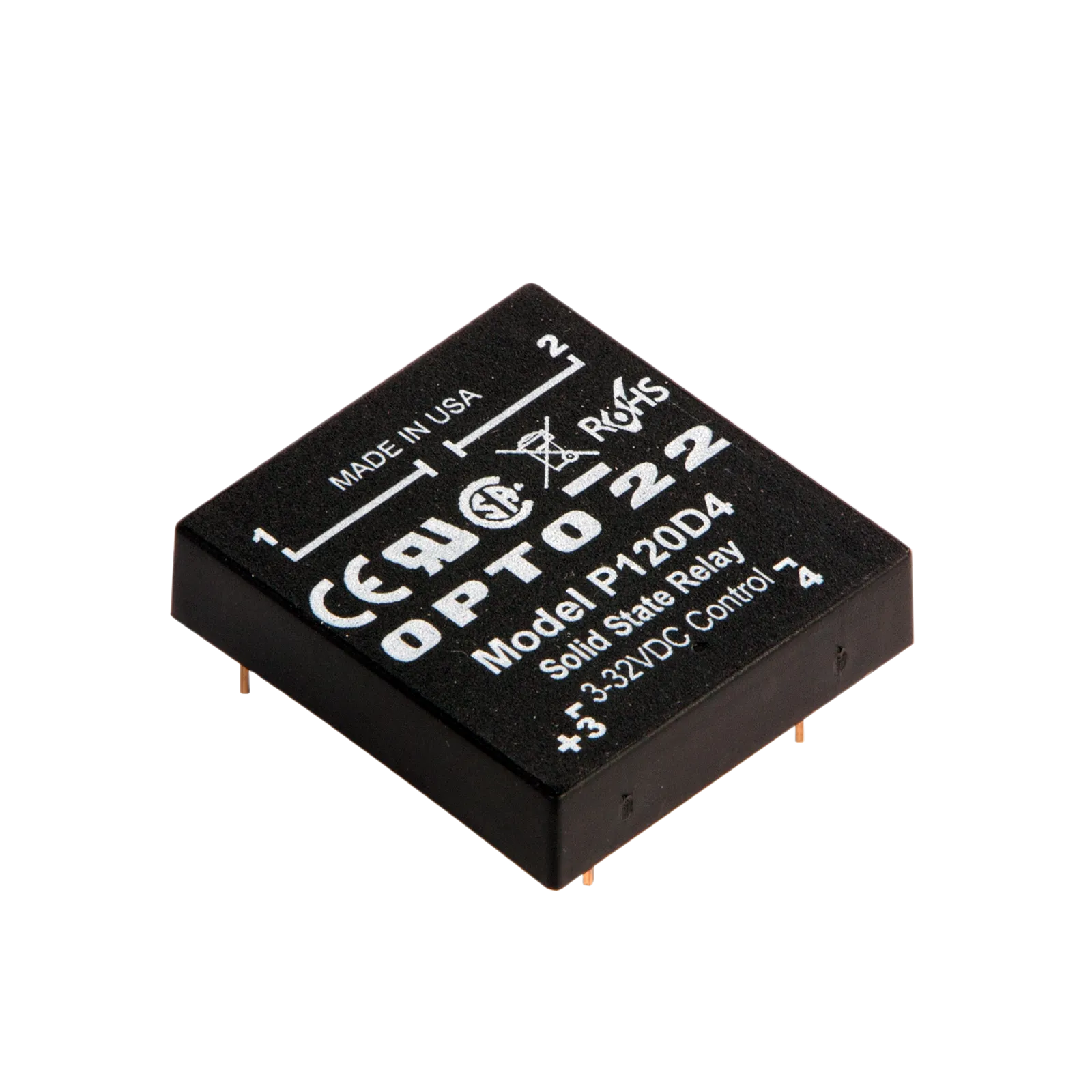

P Model, 120 VAC, 4 Amp, DC Control Solid State Relay (SSR)

P Model, 120 VAC, 4 Amp, DC Control Solid State Relay (SSR)

€ 0,00

The P120D4 is a DC-controlled P Series relay that switches 120 VAC at up to 4 A.
P Series power relays are designed for OEMs. They provide low-profile (0.5 in. [12.7 mm]) center mounting on printed circuit boards.
This SSR carries a lifetime warranty.

Out of stock

SKU: P120D4 Categories: , , Brand:

Description

The P120D4 is a DC-controlled P Series relay that switches 120 VAC at up to 4 A.
P Series power relays are designed for OEMs. They provide low-profile (0.5 in. [12.7 mm]) center mounting on printed circuit boards.
This SSR carries a lifetime warranty.

Attachments

Product features

  • Model: Solid State Relay
  • ETIM Code: EC001437
  • ETIM Class: Switching relay
  • Type of electric connection: PCB connection
  • Complete with socket: No
  • With detachable clamps: No
  • With LED indication: No
  • Rated control supply voltage DC: 3 - 32 Volt
  • Voltage type for actuating: DC
  • Drive, polarization: Polarity free
  • Drive, switching attitude: Mono stable
  • Number of contacts as normally open contact: 1
  • Type of switch contact: Single contact
  • Material contact: Brass
  • Material of contact surface: Tin
  • Voltage type (operating voltage): AC
  • Operating voltage AC 50 Hz: 12 - 140 Volt
  • Operating voltage AC 60 Hz: 12 - 140 Volt
  • Nominal current: 4 Ampere
  • Max. starting current: 85 Ampere
  • Width: 35.8 mm
  • Height: 38.4 mm
  • Depth: 9.5 mm
  • Variant: 120 Vac

Description

The P120D4 is a DC-controlled P Series relay that switches 120 VAC at up to 4 A.
P Series power relays are designed for OEMs. They provide low-profile (0.5 in. [12.7 mm]) center mounting on printed circuit boards.
This SSR carries a lifetime warranty.

Attachments
