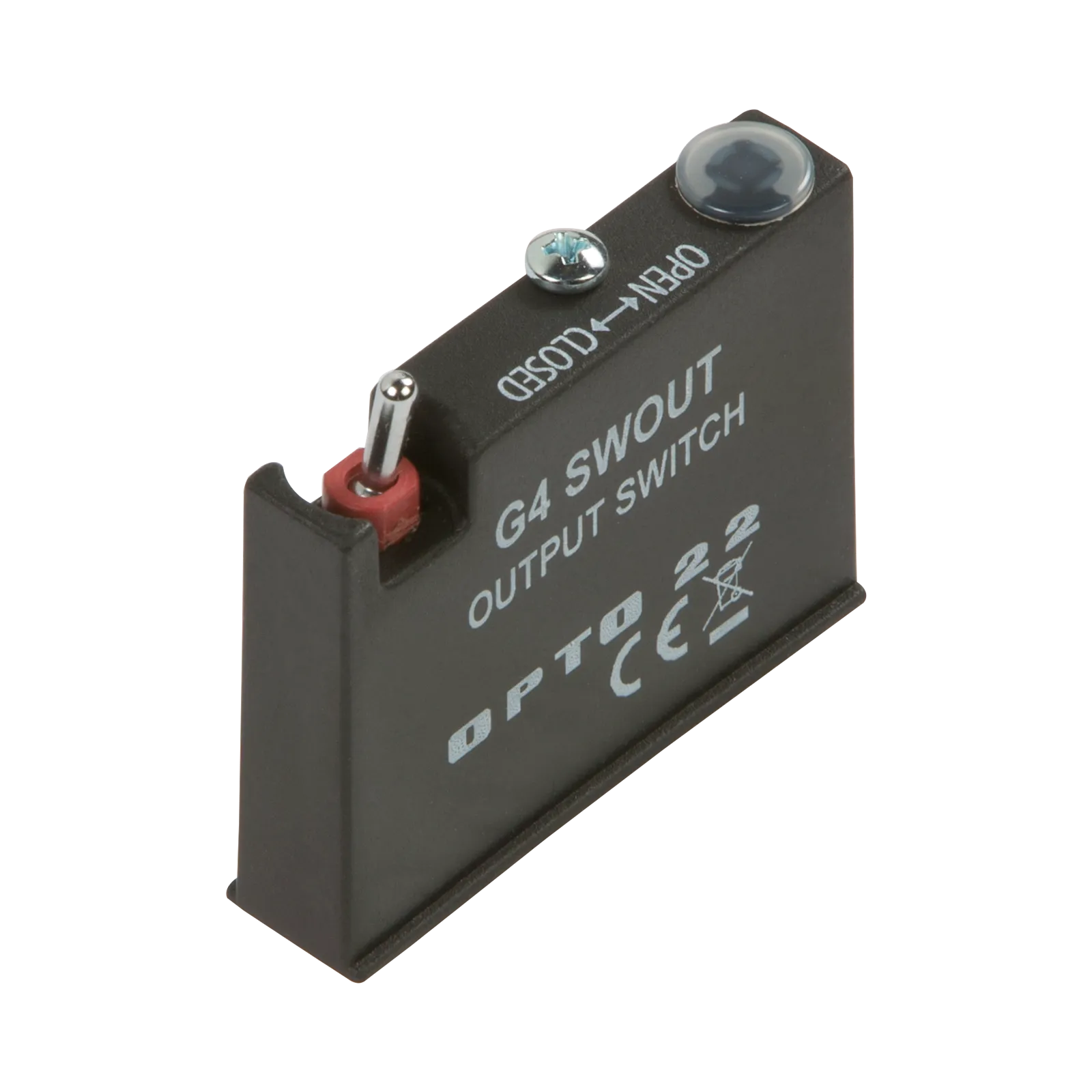

G4 Digital Output Switch, 250 VAC

G4 Digital Output Switch, 250 VAC

€ 0,00

G4 Digital Output Switch, 250 VAC

Out of stock

SKU: G4SWOUT Categories: , Brand:

Description

The G4SWOUT module is ideal for testing field wiring and devices by simulating an output from the computer. The G4SWOUT output test module provides a manual toggle switch on the field side. The switch closes a contact that shorts the field terminals to turn on a field output. The switch can handle 3 amps at 250 VAC/VDC. Internally, there is no connection to the logic side of the module.

Attachments

Product features

  • Model: G4
  • ETIM Code: EC001437
  • ETIM Class: Switching relay
  • Type of electric connection: PCB connection
  • With detachable clamps: No
  • With LED indication: Yes
  • Drive, switching attitude: Bistable
  • Type of switch contact: Single contact
  • With forced-guided contacts: No
  • Material contact: Beryllium copper
  • Material of contact surface: Gold
  • Voltage type (operating voltage): AC/DC
  • Operating voltage AC 50 Hz: 0 - 250 Volt
  • Operating voltage AC 60 Hz: 0 - 250 Volt
  • Operating voltage DC: 0 - 250 Volt
  • Nominal current: 3 Ampere
  • Max. starting current: 3 Ampere
  • Width: 48.8 mm
  • Height: 12.2 mm
  • Depth: 47.7 mm
  • Variant: Accessories

Description

The G4SWOUT module is ideal for testing field wiring and devices by simulating an output from the computer. The G4SWOUT output test module provides a manual toggle switch on the field side. The switch closes a contact that shorts the field terminals to turn on a field output. The switch can handle 3 amps at 250 VAC/VDC. Internally, there is no connection to the logic side of the module.

Attachments
