Switch, IP65, 1-way

Switch, panel mount, 1-way

€ 14,30

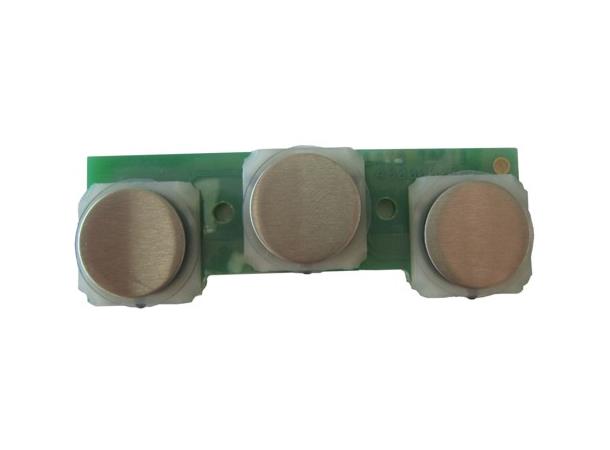

IP65 stainless steel push button switch

Out of stock

SKU: AV0630D940 Categories: , Brand:

Description

Switch, IP65 closed, single pole
Material: stainless steel (brushed)
Mechanical life: 1 mil. cycles min.
Contacts: gold plated
Travel 1,3 mm.
Operating force: 4N typ.
Initial contact resistance: 50mOhms max.
Operating temperature: -20°C to +60°C

Attachments

Product features

  • Model: Accessories - Switch
  • Utilization: Switch/push button
  • Type of fastening: Screw mounting
  • Material: Metal
  • Material quality: Stainless steel
  • Halogen free: Yes
  • Surface protection: Lacquered
  • Surface finishing: Matt
  • Colour: Stainless steel
  • With label area: No
  • Impact strength: IK08
  • Width: 10 mm
  • Height: 10 mm
  • Depth: 10 mm
  • Weight: 0.1 kg
  • Imprint/indication: None
  • Scannable symbol/barrier free: No
  • Suitable for touch sensor connector for bus system: No
  • Monitoring window/light outlet: No
  • Anti-bacterial treatment: No
  • With exchangeable lens/symbol: No
  • Suitable for degree of protection (IP): IP65
  • ETIM Code: EC000011
  • ETIM Class: Control element/cover plate for domestic switching devices
  • Variant: Industrial - Panel mount

Description

Switch, IP65 closed, single pole
Material: stainless steel (brushed)
Mechanical life: 1 mil. cycles min.
Contacts: gold plated
Travel 1,3 mm.
Operating force: 4N typ.
Initial contact resistance: 50mOhms max.
Operating temperature: -20°C to +60°C

Attachments

Get a quote
