Description

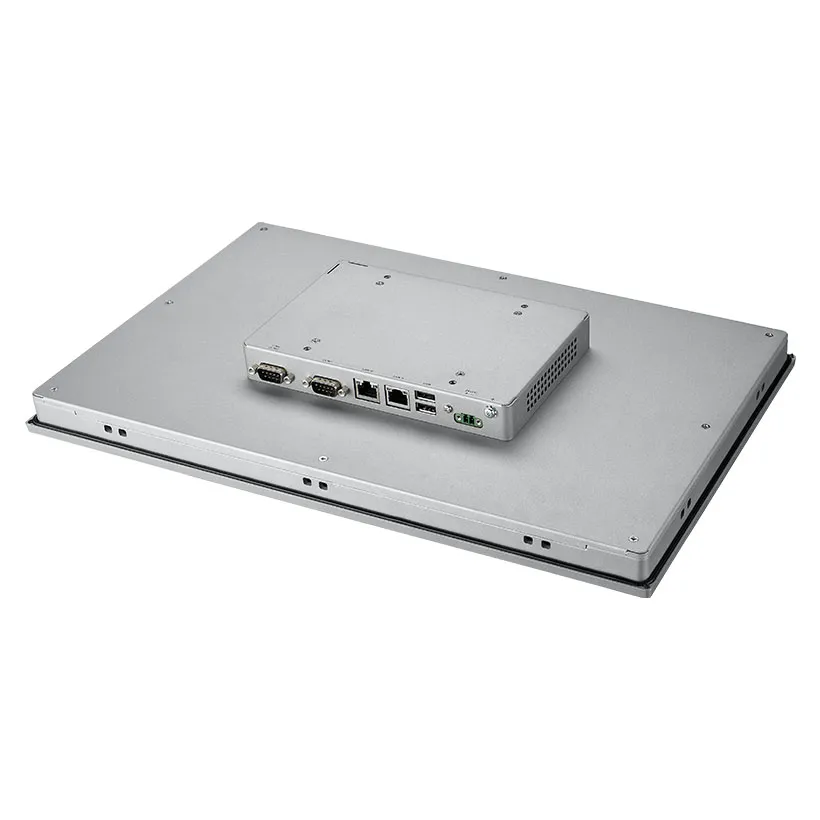

TPC-100W series is a compact touch panel computer equipped with an NXP® Cortex™-A53 i.MX 8M Mini quad-core processor, 7″/10.1″/15.6″/21.5″ TFT LCD display, multi-touch glass sensor, 4 GB of DDR4 RAM, and 16 GB of eMMC storage. To ensure stable operation in harsh industrial environments, TPC-100W supports a wide operating temperature range (-20 ~ 60 °C /-4 ~ 140 °F) and Panel/VESA mounting and features an IP66-rated front panel that protects against water and dust ingress. For web-based operations, TPC-100W offers two 10/100/1000 LANs that one supports the IEEE 802.3 at PoE-PD standard. The inclusion of VNC and browsers enable rapid Web application development and easy configuration. Finally, TPC-100W supports various OS including Linux Yocto with full QT graphics and Android to ensure easy deployment for diverse applications.
Features:
NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor
7″, 10.1″, 15.6″ and 21.5″ 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel
Built in 4 GB DDR4 RAM and 16 GB eMMC storage onboard
2 x 10/100/1000 Mbps LANs with optional IEEE 802.3at/af PoE-PD module support (7″ and 10.1″ only)
1 mb FRAM backup memory for unexpected power interruptions
2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
Embedded browser and for rapid Web App development
Supports Linux Yocto (with Arm® SystemReady IR certification guarantee) and Secure Boot
Supports TPM 2.0 hardware security
Compatible with VESA and panel mounting
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
