Description

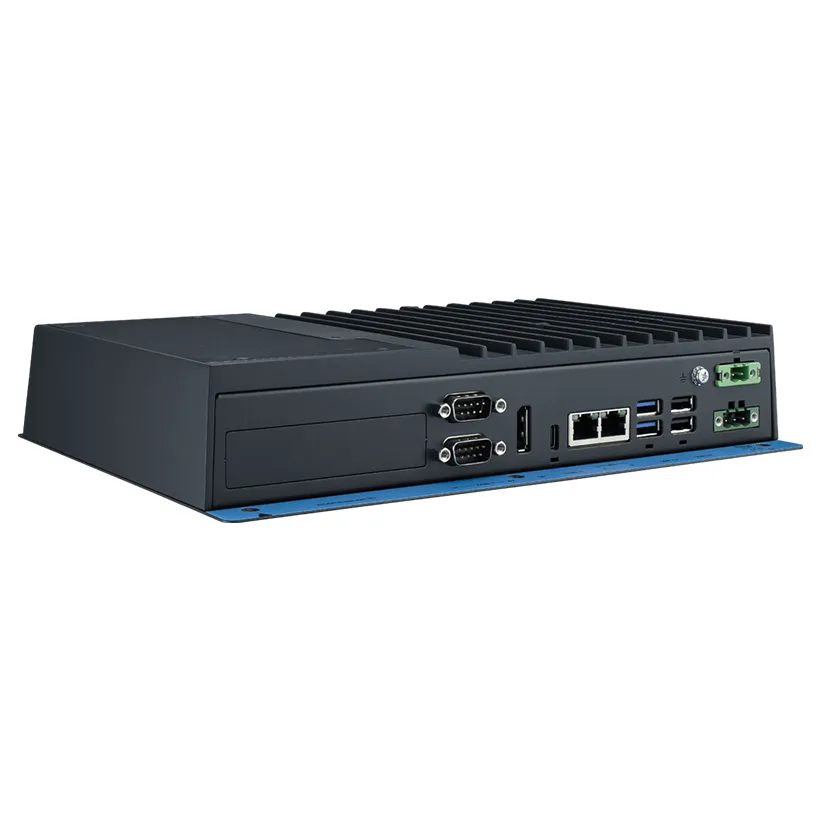

Advantech’s TPC-B520 computing box module, as a member of the Modular Series TPC family, is powered by 13th Generation Intel Core processors. With its fanless design, TPC-B520 delivers high performance that not simply meets your demands for a daily-operation control panel, but a genuine Industry 4.0-era-tailored Industrial PC that features bountiful I/Os including two USB 3.2 ports, one type C port, expansions with M.2 NVME SSD and 5G/Wi-Fi module support for ultra speed data transmission. With an easy pairing with modular series FPM module, the whole system makes an IP66-grade powerful Panel PC that ranges from 12.1″ to 23.8″. For enhance adaptability and compatibility with various environment, FHD resolution and high brightness for sunlight readable FPM modules are ready and available. *For other Modular Series TPC/FPM family members, please find ‘TPC-B610, ‘TPC-B520L’, TPC-B510′ and ‘TPC-B300’ on Advantech’s official website.
Features:
Modular Computing Box powered by 13th Gen. Intel® Core™ i5-1335UE deca-core/ i7-1365URE deca-core processor
Modular Front Panel modules ranging from 12.1″ to 23.8″ with P-CAP multi-touch in selection (12.1″, 15″, 15.6″, 21.5″ with high brightness panel option)
Single DDR5 Memory slot supports up to 32GB
Support expansion via three M.2 slots (NVMe, Wifi, 5G)
LAN, POE, isolated serial port and isolated digital I/O via iDoor technology
Support Type C connector with USB 3.2, DP 1.4a, 15W power delivery
Support 3 displays with clone/extend mode (FPM-D/DP/Type C)
Performance, fanless embedded system with chassis grounding protection
RAID 0 and 1 Support
