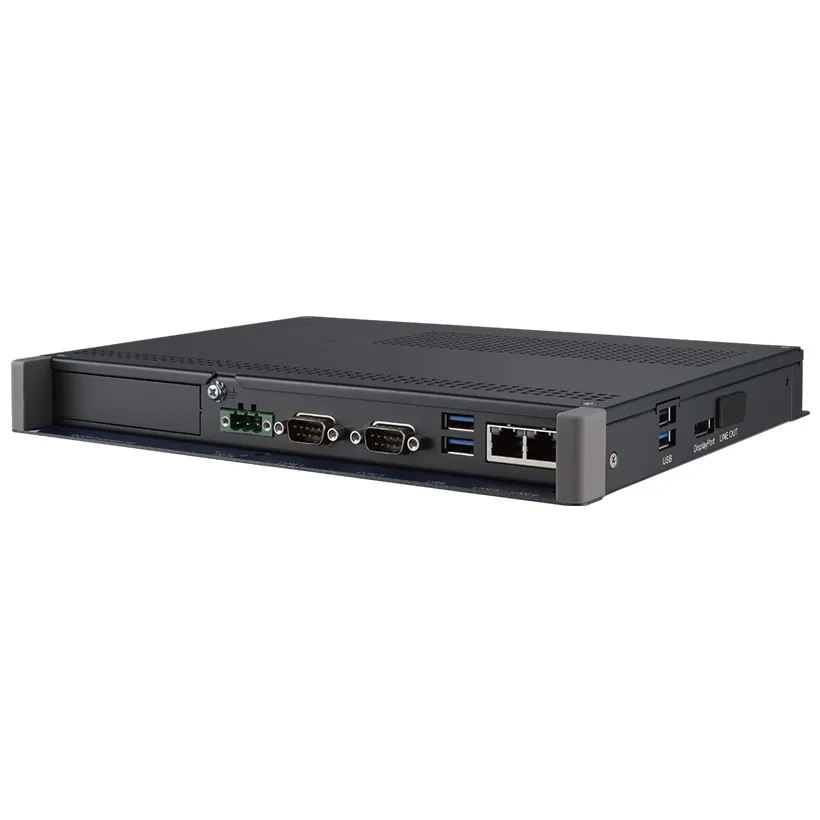

Modular TPC - Computing Box Module with Intel Atom and Celeron CPU

Modular TPC – Computing Box Module with Intel Atom and Celeron CPU

€ 0,00

Modular TPC – Computing Box Module with Intel Atom and Celeron CPU

Out of stock

SKU: TPC-B300-J20A Categories: , Brand:

Description

TPC-B300 computing box modules are powered by Intel® Atom™ X6425E/Celeron® J6412 Processors to provide compact and fanless control panel solutions that deliver high-performance computing. With a highly flexible modular design, TPC-B300 allows users to change the panel sizes (12″-23.8″).

Features:
Computing Box powered by Intel® Atom™ X6425E/Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
ƒ Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1″ & 19″ w/ robust 5-wire resistive touch)
ƒ 1 x Full-size mini PCIe for iDoor expansion
ƒ 1 x M.2 Key-E 2230 for WIFI + BT module
ƒ 1 x M.2 Key-M 2280 for SATA SSD
ƒ 1 x 2.5″ SATA SSD expansion
ƒ 2 x 2.5 Gb LAN
ƒ Supports TPM2.0 hardware security
ƒ Wide Temp. Support. Range -20~60 °C (Atom™ X6425E)

Attachments

Product features

  • Model: Touch Panel Computer
  • ETIM Code: EC001414
  • ETIM Class: Panel PC
  • Supply voltage DC: 19.2 - 28.8 Volt
  • Voltage type (supply voltage): DC
  • Number of HW-interfaces industrial Ethernet: 2
  • Number of HW-interfaces RS-232: 2
  • Number of HW-interfaces RS-422: 2
  • Number of HW-interfaces RS-485: 2
  • Number of HW-interfaces USB: 4
  • Number of HW-interfaces other: 1
  • Preinstalled operating system: Other
  • Max. main memory: 32000 Megabyte
  • Mouse-cursor control integrated: No
  • Operating temperature: -20 - 60 Degrees celsius
  • With other storage media: Yes
  • Customer individual configuration: Yes
  • Suitable for rail mounting: No
  • Wall mounting/direct mounting: Yes
  • Front built-in possible: Yes
  • Rack-assembly possible: No
  • Mounting type, table foot: No
  • Mounting type, gallows mounting: No
  • Suitable for safety functions: No
  • Width of the front: 269 Millimetre
  • Height of the front: 203 Millimetre
  • Built-in depth: 30 Millimetre
  • Certified for UL hazardous location class I: No
  • Certified for UL hazardous location class II: No
  • Certified for UL hazardous location division 1: No
  • Certified for UL hazardous location division 2: No
  • Certified for UL hazardous location class III: No
  • Certified for UL hazardous location group A (acetylene): No
  • Certified for UL hazardous location group B (hydrogen): No
  • Certified for UL hazardous location group C (ethylene): No
  • Certified for UL hazardous location group D (propane): No
  • Certified for UL hazardous location group E (metal dusts): No
  • Certified for UL hazardous location group F (carbonaceous dusts): No
  • Certified for UL hazardous location group G (non-conductive dusts): No
  • Variant: Industrial-Modular
  • Width: 269 mm
  • Height: 203 mm
  • Depth: 30 mm
  • Weight: 4.6 kg

Description

TPC-B300 computing box modules are powered by Intel® Atom™ X6425E/Celeron® J6412 Processors to provide compact and fanless control panel solutions that deliver high-performance computing. With a highly flexible modular design, TPC-B300 allows users to change the panel sizes (12″-23.8″).

Features:
Computing Box powered by Intel® Atom™ X6425E/Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
ƒ Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1″ & 19″ w/ robust 5-wire resistive touch)
ƒ 1 x Full-size mini PCIe for iDoor expansion
ƒ 1 x M.2 Key-E 2230 for WIFI + BT module
ƒ 1 x M.2 Key-M 2280 for SATA SSD
ƒ 1 x 2.5″ SATA SSD expansion
ƒ 2 x 2.5 Gb LAN
ƒ Supports TPM2.0 hardware security
ƒ Wide Temp. Support. Range -20~60 °C (Atom™ X6425E)

Attachments
