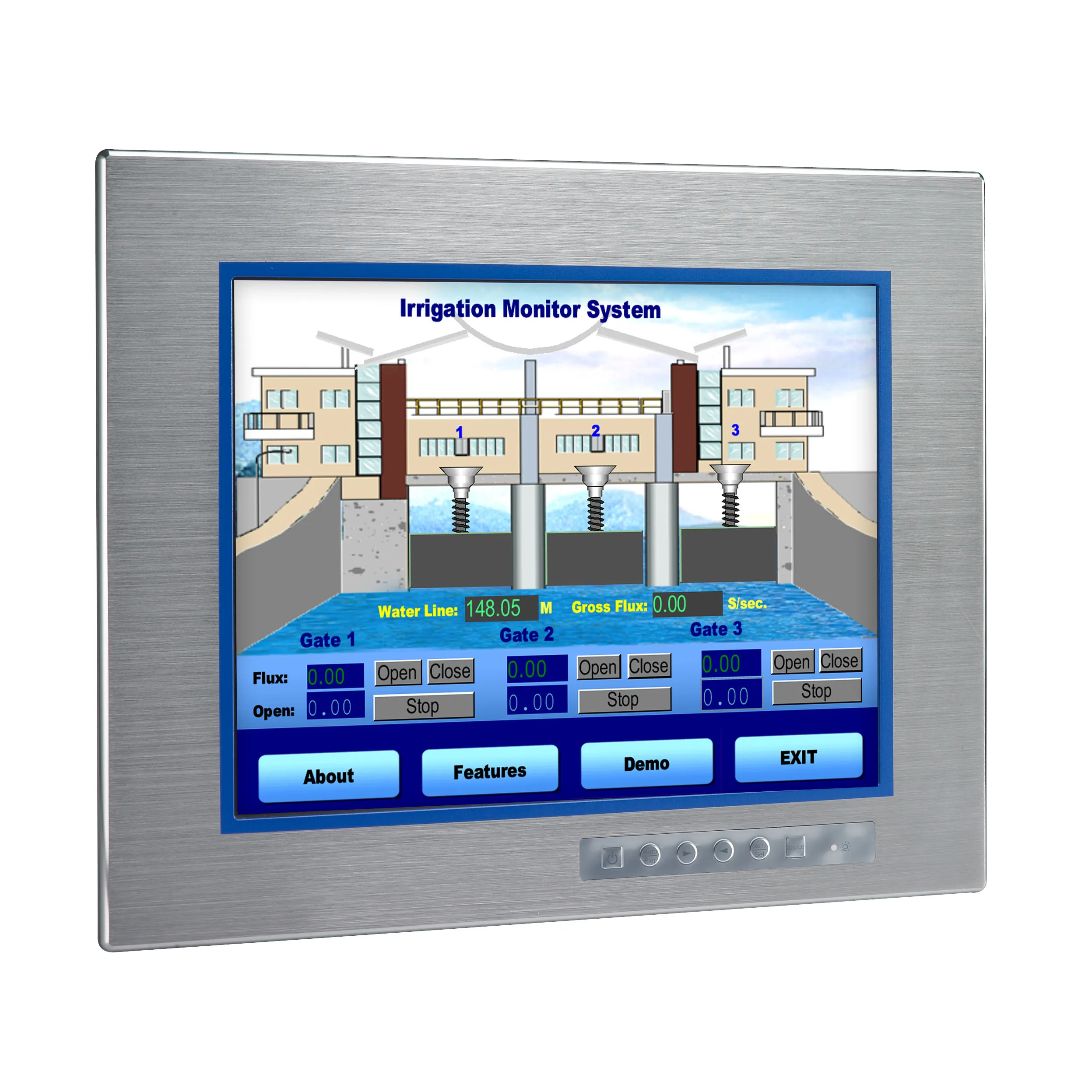

15" XGA Industrial Monitor for Hazardous Location, with 316L Stainless Steel Front Panel
15" XGA Industrial Monitor for Hazardous Location, with 316L Stainless Steel Front Panel
15" XGA Industrial Monitor for Hazardous Location, with 316L Stainless Steel Front Panel

15″ XGA Industrial Monitor for Hazardous Location, with 316L Stainless Steel Front Panel

€ 0,00

15″ XGA Industrial Monitor for Hazardous Location, with 316L Stainless Steel Front Panel

Out of stock

SKU: FPM-8151H-R3BE Categories: , Brand:

Description

The FPM-8151H is a rugged and reliable 15″ XGA, wide-temperature industrial monitor aimed at diverse applications. With support for a wide operating temperature range (-20~ 60°C/-4 ~ 140°F) and UL Class I, Division 2, certification for hazardous environments, FPM-8151H is built to withstand operation in harsh industrial environments. The FPM-8151H monitor also features enhanced 5-wire resistive touch control and system isolation for enhanced reliability.

Features:
15″ XGA TFT LCD with LED backlight
ƒ Stainless steel 316L front panel
ƒ IP65 compliant front panel
ƒ -20 ~ 60°C (-4 ~ 140°F) wide operating temperature range
ƒ Enhanced 5-wire resistive touch panel
ƒ Direct VGA & DVI-D video input interface
ƒ Combo RS-232 & USB interface for touchscreen function
ƒ Supports 24 VDC input and 100~240 VAC input (optional AC adapter)
ƒ OSD control pad with lockable function on front panel
ƒ UL CID2 certified for hazardous environments

Attachments

Product features

  • Model: Monitor
  • ETIM Code: EC004862
  • ETIM Class: Monitor
  • Type of display: TFT
  • Resolution: Other
  • Housing colour: Other
  • With display backlight: Yes
  • Colour display: Yes
  • Number of colours of the display: 16200000
  • Visible diagonal screen size: 38.1 Centimetre
  • Visible diagonal screen size (inch): 15 Inch
  • Number of pixels, horizontal: 1024
  • Number of pixels, vertical: 768
  • Image format: 4:3
  • With touch screen: Yes
  • Supply voltage AC 50 Hz: 100 - 240 Volt
  • Supply voltage AC 60 Hz: 100 - 240 Volt
  • Supply voltage DC: 24 - 24 Volt
  • Voltage type (supply voltage): DC
  • Number of DVI sockets: 1
  • VGA-connection (D-Sub 15-pole): Yes
  • Number of ports USB-A: 1
  • Operating temperature: -20 - 60 Degrees celsius
  • Freestanding: No
  • Suitable for rail mounting: No
  • Wall mounting/direct mounting: Yes
  • Front built-in possible: Yes
  • Rack-assembly possible: No
  • Mounting Interface Standard (MIS) according to VESA: 100x100
  • Degree of protection (IP): IP65
  • Width: 422 mm
  • Height: 338 mm
  • Depth: 68 mm
  • Variant: Ex Cert
  • Weight: 8.5 kg

Description

The FPM-8151H is a rugged and reliable 15″ XGA, wide-temperature industrial monitor aimed at diverse applications. With support for a wide operating temperature range (-20~ 60°C/-4 ~ 140°F) and UL Class I, Division 2, certification for hazardous environments, FPM-8151H is built to withstand operation in harsh industrial environments. The FPM-8151H monitor also features enhanced 5-wire resistive touch control and system isolation for enhanced reliability.

Features:
15″ XGA TFT LCD with LED backlight
ƒ Stainless steel 316L front panel
ƒ IP65 compliant front panel
ƒ -20 ~ 60°C (-4 ~ 140°F) wide operating temperature range
ƒ Enhanced 5-wire resistive touch panel
ƒ Direct VGA & DVI-D video input interface
ƒ Combo RS-232 & USB interface for touchscreen function
ƒ Supports 24 VDC input and 100~240 VAC input (optional AC adapter)
ƒ OSD control pad with lockable function on front panel
ƒ UL CID2 certified for hazardous environments

Attachments
