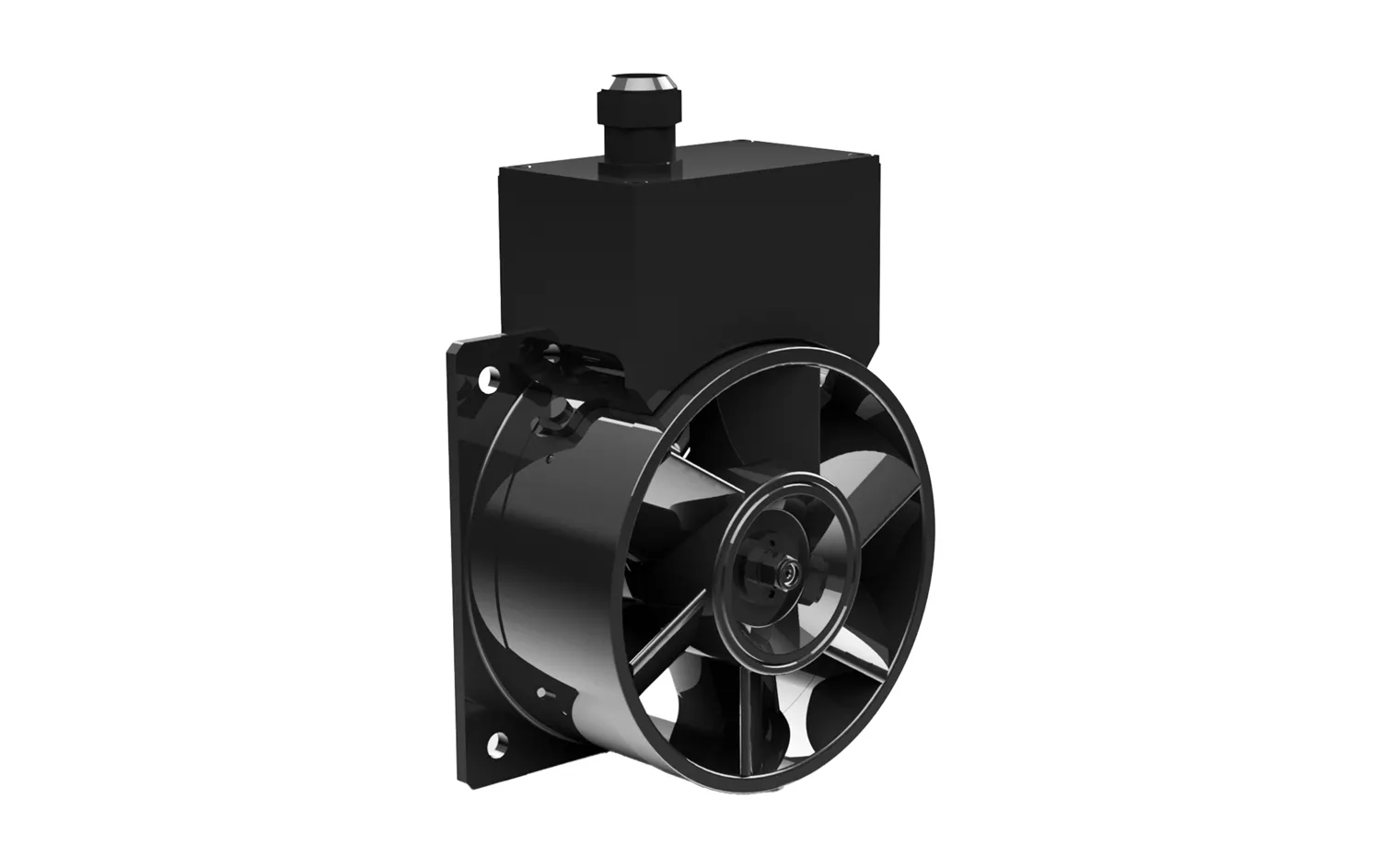

DC High Performance Fan 80x117x50mm, 28Vdc

DC High Performance Fan 80x117x50mm, 28Vdc

€ 0,00

DC High Performance Fan 80x117x50mm, 28Vdc, 60 l/s (max); 203mm H2O (max)

Out of stock

SKU: 103D Categories: , Brand:

Description

Specifications:
• Weight: 1,1 Kg / 2,43 Lb
• Housing in Aluminium
• Impeller in metal
• L-10 life expectancy at 40°C: 25.000 hours
• Operating temperature range: -25 / +70 °C
• Storage temperature: -54 / +85°C
• Connection: Leads
• DC induction motor
• Protected against transients until 80V
• IP44
Options:
• Speed sensor
• Alarm
• Other IP levels
• Terminals connection
• Salt spray protection
• Shocks and vibrations protection
• Marine application
• Wide temperature range
• Other voltages
• Other speeds
• Solid state relay
• 0-10V drive
• Remote electronics

Product features

  • Model: Axial fan
  • ETIM Code: EC010883
  • ETIM Class: Wall mounted fan (built-up)
  • Housing material: Other
  • Air volume, unloaded: 216 Cubic metre per hour
  • Max. air volume at 50 Pa: 180 Cubic metre per hour
  • Max. air volume at 100 Pa: 144 Cubic metre per hour
  • Max. air volume at 150 Pa: 54 Cubic metre per hour
  • Max. air volume at 200 Pa: 7 Cubic metre per hour
  • Connection voltage: 28 Volt
  • Power consumption: 120 Watt
  • With thermal overload protection: No
  • Electrical connection: Cable
  • Degree of protection (IP): IP40
  • Max. air temperature: 70 Degrees celsius
  • Suitable for electronic control: No
  • Suitable for transformer control: No
  • Suitable for frequency control: No
  • Operation: Other
  • Timer: None
  • Hygrostat: None
  • Louver: None
  • With non-return valve: No
  • Height: 80 mm
  • Width: 117 mm
  • Depth: 50 mm
  • Impeller diameter: 50 Millimetre
  • Colour: Black
  • Variant: DC High Performance
  • Weight: 1.1 kg

Description

Specifications:
• Weight: 1,1 Kg / 2,43 Lb
• Housing in Aluminium
• Impeller in metal
• L-10 life expectancy at 40°C: 25.000 hours
• Operating temperature range: -25 / +70 °C
• Storage temperature: -54 / +85°C
• Connection: Leads
• DC induction motor
• Protected against transients until 80V
• IP44
Options:
• Speed sensor
• Alarm
• Other IP levels
• Terminals connection
• Salt spray protection
• Shocks and vibrations protection
• Marine application
• Wide temperature range
• Other voltages
• Other speeds
• Solid state relay
• 0-10V drive
• Remote electronics
