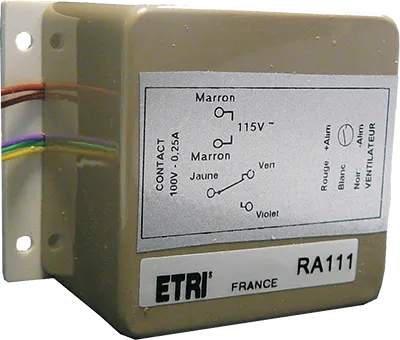

Alarm Relay 70x55x40mm, 15 Hz, 115Vac

Alarm Relay 70x55x40mm, 15 Hz, 115Vac

€ 0,00

Alarm Relay 70x55x40mm, 15 Hz, 115Vac, 0°C / +70°C

Out of stock

SKU: RA111 Categories: , Brand:

Description

Specifications:
• Disengaging frequency: 15Hz
• Voltage RA107: 230Vac – 50/60Hz
• Voltage RA111: 115Vac – 50/60Hz
• Operating temperature range: 0 / +70 °C.
• Contact:
Switch off power: 3W
Voltage (max): 100V
Curtrent (max): 0,25A
Contact resistance: 150mΩ

Attachments

Product features

  • Model: Relay
  • ETIM Code: EC001448
  • ETIM Class: Speed-/standstill monitoring relay
  • Type of electric connection: Other
  • Rated control supply voltage AC 50 Hz: 115 - 115 Volt
  • Rated control supply voltage AC 60 Hz: 115 - 115 Volt
  • Voltage type for actuating: AC
  • With detachable clamps: No
  • Evaluation inputs: 1-channel
  • Function rotational speed monitoring: No
  • Function standstill monitoring: Yes
  • Rated operating frequency: 15 - 15 Hertz
  • With feedback circuit: No
  • Number of outputs, safety related, undelayed, with contact: 1
  • Width: 55 mm
  • Height: 70 mm
  • Depth: 40 mm
  • Variant: Alarm
  • Weight: 0.1 kg

Description

Specifications:
• Disengaging frequency: 15Hz
• Voltage RA107: 230Vac – 50/60Hz
• Voltage RA111: 115Vac – 50/60Hz
• Operating temperature range: 0 / +70 °C.
• Contact:
Switch off power: 3W
Voltage (max): 100V
Curtrent (max): 0,25A
Contact resistance: 150mΩ

Attachments
