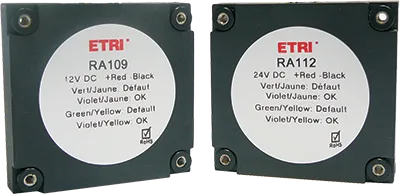

Alarm Relay 61x61x13mm, 15 Hz, 12 Vdc

Alarm Relay 61x61x13mm, 15 Hz, 12 Vdc

€ 0,00

Alarm Relay 61x61x13mm, 15 Hz, 12 Vdc, -40°C / +50°C

Out of stock

SKU: RA109A Categories: , Brand:

Description

Specifications:
• Disengaging frequency: 15Hz
• Voltage RA109A: 12Vdc
• Voltage RA112A: 24Vdc
• Operating temperature range RA106A: -40 / +50 °C.
• Operating temperature range RA112A: -40 / +70 °C.
• Contact:
Switch off power: 3W
Voltage (max): 175V
Curtrent (max): 0,25A
Contact resistance: 150mΩ

Attachments

Product features

  • Model: Relay
  • ETIM Code: EC001448
  • ETIM Class: Speed-/standstill monitoring relay
  • Type of electric connection: Other
  • Rated control supply voltage DC: 12 - 12 Volt
  • Voltage type for actuating: DC
  • With detachable clamps: No
  • Evaluation inputs: 1-channel
  • Function rotational speed monitoring: No
  • Function standstill monitoring: Yes
  • Rated operating frequency: 15 - 15 Hertz
  • With feedback circuit: No
  • Number of outputs, safety related, undelayed, with contact: 1
  • Width: 61 mm
  • Height: 61 mm
  • Depth: 13 mm
  • Variant: Alarm
  • Weight: 0.1 kg

Description

Specifications:
• Disengaging frequency: 15Hz
• Voltage RA109A: 12Vdc
• Voltage RA112A: 24Vdc
• Operating temperature range RA106A: -40 / +50 °C.
• Operating temperature range RA112A: -40 / +70 °C.
• Contact:
Switch off power: 3W
Voltage (max): 175V
Curtrent (max): 0,25A
Contact resistance: 150mΩ
