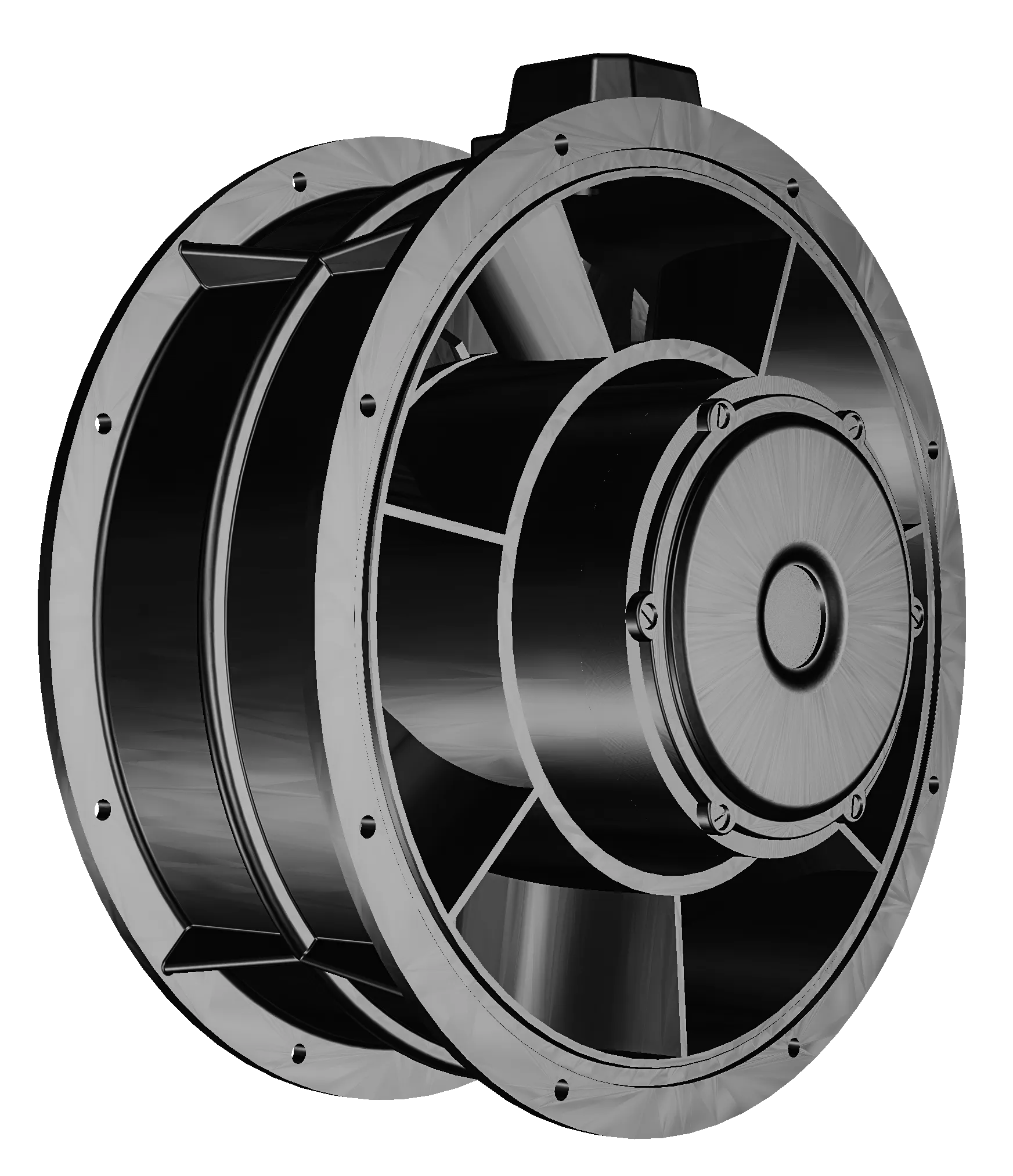

AC High Performance Fan 350x177xdiamm, 220Vac, 3-phase

AC High Performance Fan 350x177xdiamm, 220Vac, 3-phase

€ 0,00

AC High Performance Fan 350x177xdiamm, 220Vac, 3-phase, 850 l/s (max); 60mm H2O (max)

Out of stock

SKU: 60AF026DC13 Categories: , Brand:

Description

Specifications:
• Weight: 13,1 Kg / 28,95 Lb
• Housing in Aluminium
• Impeller in metal
• L-10 life expectancy at 40°C: 25.000 hours
• Operating temperature range: -10 / +70 °C
• Storage temperature: -54 / +85°C
• Connection: Terminal box
• IP42
Options:
• Speed sensor
• Other IP levels
• Salt spray protection
• Shocks and vibrations protection
• Marine application
• Wide temperature range
• Other voltages
• Safety switch
• NATO Codification (not on all part numbers,
please consult the factory for more detailed
information)

Attachments

Product features

  • Model: Axial fan
  • ETIM Code: EC010883
  • ETIM Class: Wall mounted fan (built-up)
  • Housing material: Other
  • Air volume, unloaded: 6485 Cubic metre per hour
  • Max. air volume at 50 Pa: 2880 Cubic metre per hour
  • Max. air volume at 100 Pa: 2844 Cubic metre per hour
  • Max. air volume at 150 Pa: 2700 Cubic metre per hour
  • Max. air volume at 200 Pa: 2520 Cubic metre per hour
  • Max. air volume at 250 Pa: 2340 Cubic metre per hour
  • Max. air volume at 300 Pa: 2196 Cubic metre per hour
  • Connection voltage: 220 Volt
  • Power consumption: 385 Watt
  • With thermal overload protection: No
  • Electrical connection: Terminals
  • Degree of protection (IP): IP42
  • Max. air temperature: 70 Degrees celsius
  • Suitable for electronic control: No
  • Suitable for transformer control: No
  • Suitable for frequency control: No
  • Operation: Other
  • Timer: None
  • Hygrostat: None
  • Louver: None
  • With non-return valve: No
  • Height: 350 mm
  • Width: 177 mm
  • Depth: 350 mm
  • Impeller diameter: 300 Millimetre
  • Colour: Black
  • Variant: 50-60Hz High Performance
  • Weight: 13.1 kg

Description

Specifications:
• Weight: 13,1 Kg / 28,95 Lb
• Housing in Aluminium
• Impeller in metal
• L-10 life expectancy at 40°C: 25.000 hours
• Operating temperature range: -10 / +70 °C
• Storage temperature: -54 / +85°C
• Connection: Terminal box
• IP42
Options:
• Speed sensor
• Other IP levels
• Salt spray protection
• Shocks and vibrations protection
• Marine application
• Wide temperature range
• Other voltages
• Safety switch
• NATO Codification (not on all part numbers,
please consult the factory for more detailed
information)

Attachments
