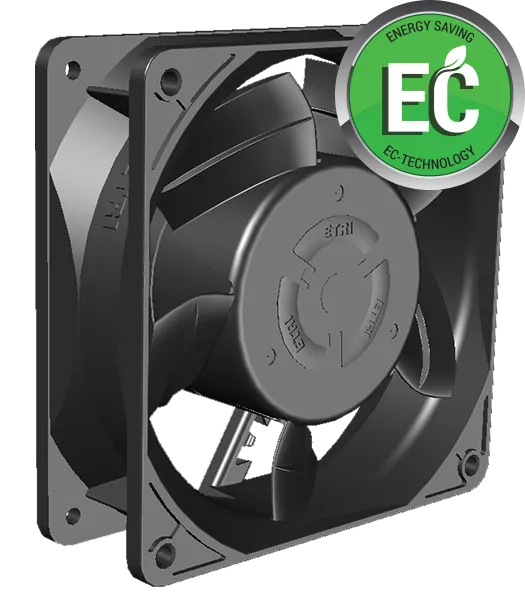

AC Axial Fan 120x120x38mm, 115-230Vac, 1-phase

AC Axial Fan 120x120x38mm, 115-230Vac, 1-phase

€ 0,00

AC Axial Fan 120x120x38mm, 115-230Vac, 1-phase, 54,7 l/s (max); 11,2mm H2O (max)

Out of stock

SKU: 125ESZLP11600 Categories: , Brand:

Description

Specifications:
• Weight: 0,33 Kg / 0,73 Lb
• Housing in plastic UL 94 V-0
• Turbine in plastic UL 94 V-0
• L-10 life expectancy at 40°C: 80.000 hours
• Operating temperature range: -20 / +70 °C
• Storage temperature: -40 / +70°C
• Connection: Leads
• Integrated circuit
• IP20
• PWM
Options:
• Speed sensor
• Alarm
• Other IP levels
• Salt spray protection
• Shocks and vibrations protection

Attachments

Product features

  • Model: Axial fan
  • ETIM Code: EC010883
  • ETIM Class: Wall mounted fan (built-up)
  • Housing material: Plastic
  • Air volume, unloaded: 197 Cubic metre per hour
  • Max. air volume at 50 Pa: 133 Cubic metre per hour
  • Max. air volume at 100 Pa: 18 Cubic metre per hour
  • With thermal overload protection: No
  • Electrical connection: Cable
  • Degree of protection (IP): IP20
  • Max. air temperature: 70 Degrees celsius
  • Suitable for electronic control: Yes
  • Suitable for transformer control: No
  • Suitable for frequency control: No
  • Operation: Other
  • Timer: None
  • Hygrostat: None
  • Louver: None
  • With non-return valve: No
  • Height: 120 mm
  • Width: 120 mm
  • Depth: 38 mm
  • Impeller diameter: 104 Millimetre
  • Colour: Black
  • Variant: 50-60Hz
  • Weight: 0.33 kg

Description

Specifications:
• Weight: 0,33 Kg / 0,73 Lb
• Housing in plastic UL 94 V-0
• Turbine in plastic UL 94 V-0
• L-10 life expectancy at 40°C: 80.000 hours
• Operating temperature range: -20 / +70 °C
• Storage temperature: -40 / +70°C
• Connection: Leads
• Integrated circuit
• IP20
• PWM
Options:
• Speed sensor
• Alarm
• Other IP levels
• Salt spray protection
• Shocks and vibrations protection

Attachments
