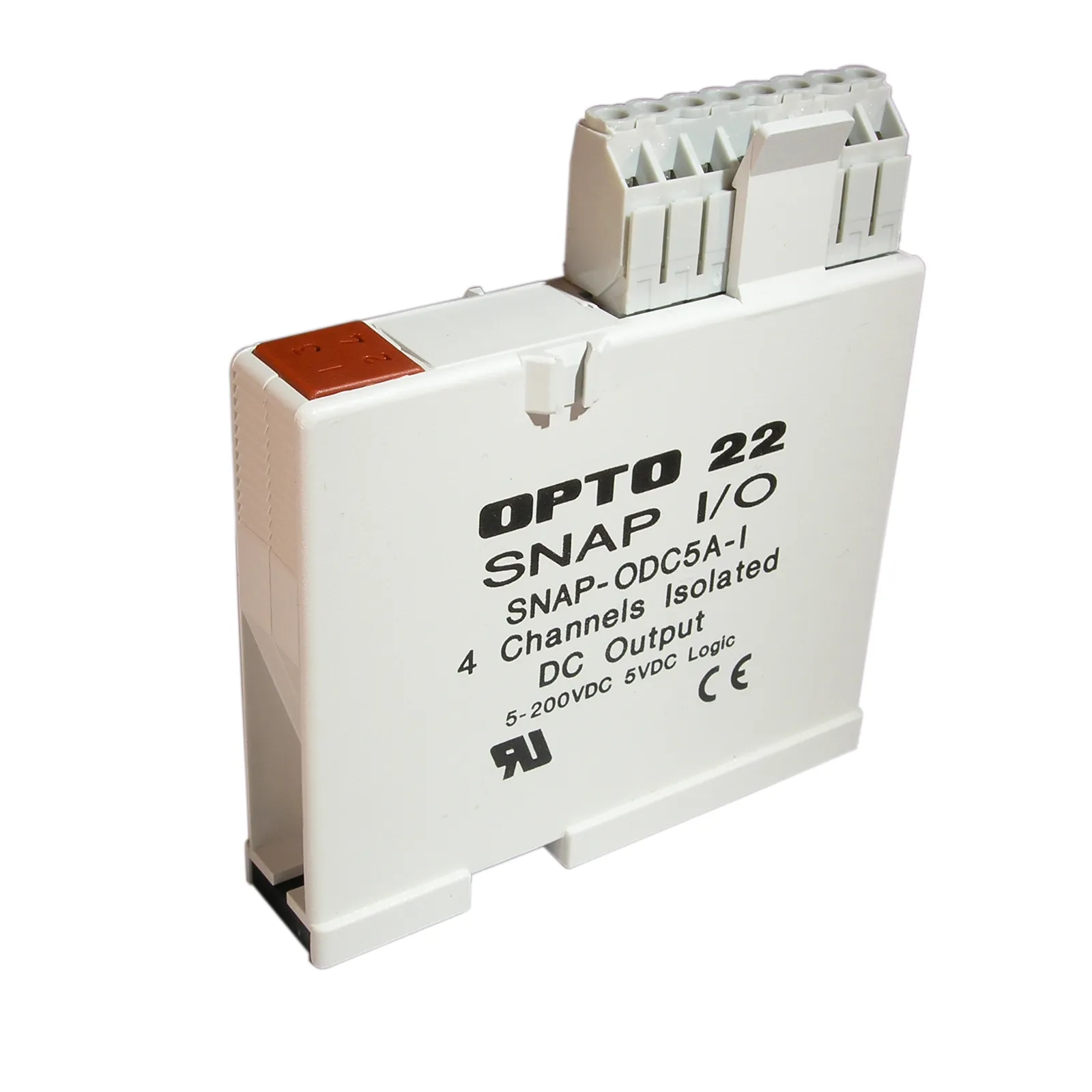

SNAP 4-Ch Isolated 5-200 VDC Digital Output Module

SNAP 4-Ch Isolated 5-200 VDC Digital Output Module

€ 0,00

SNAP 4-Ch Isolated 5-200 VDC digitaal Output Module

Out of stock

SKU: SNAP-ODC5A-I Categories: , Brand:

Description

The SNAP-ODC5A-i provides four isolated channels of 5-200 VDC digital output, each switching a separate DC load. The module features channel-specific LEDs for troubleshooting and includes a connector clamp to prevent sparks.
For easier, faster wiring, see SNAP TEX cables and breakout boards.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC001419
  • ETIM Class: PLC digital I/O-module
  • Supply voltage DC: 4.9 - 5.1 Volt
  • Voltage type (supply voltage): DC
  • Digital outputs configurable: No
  • Power consumption: 0.25 Watt
  • Short-circuit protection, outputs available: No
  • Type of electric connection: Screw-/spring clamp connection
  • Time delay at signal change: 0.1 - 0.75 Millisecond
  • Width: 85.5 mm
  • Height: 18.3 mm
  • Depth: 90.2 mm
  • Variant: Digital Output
  • Weight: 0.1 kg

Description

The SNAP-ODC5A-i provides four isolated channels of 5-200 VDC digital output, each switching a separate DC load. The module features channel-specific LEDs for troubleshooting and includes a connector clamp to prevent sparks.
For easier, faster wiring, see SNAP TEX cables and breakout boards.

Attachments
