Description

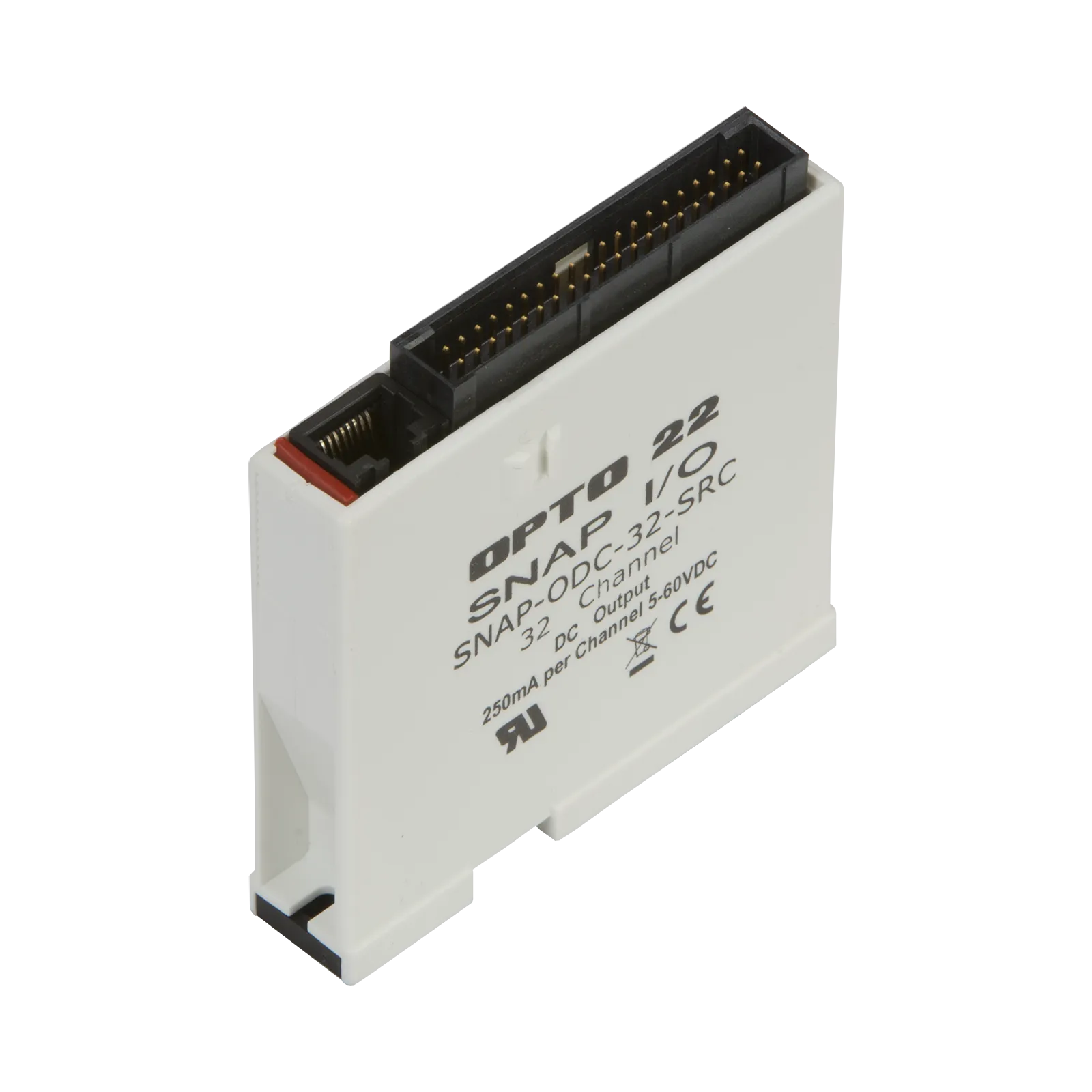

The SNAP-ODC-32-SRC digital output module (load sourcing) provides 32 digital output channels in one compact SNAP module. This module is ideal for OEMs and others with applications with high point counts, or for those requiring a large number of digital output channels on one SNAP I/O rack. The high-density configuration reduces per-point costs of digital I/O systems by providing up to eight times as many I/O channels in the same space.
For easy field wiring, use the SNAP-ODC-HDB or compact SNAP-UDC-HDB breakout rack and the SNAP-HD-BF6 header cable. A wiring harness with flying leads (SNAP-HD-CBF6) is also available.
To switch larger loads, use the module with two SNAP-TEX-MR10-16C breakout boards, which have mechanical relays that allow you to switch loads up to 10 amps. Easily connect the module to the boards using the SNAP-HD-G4F6 cable, which simply plugs into both the module and the boards.
For switching signals with higher current, see the SNAP-UDC-HDB-G4 breakout board, which mounts G4 input modules that handle up to 3 amps per point (G4 modules are sold separately).
