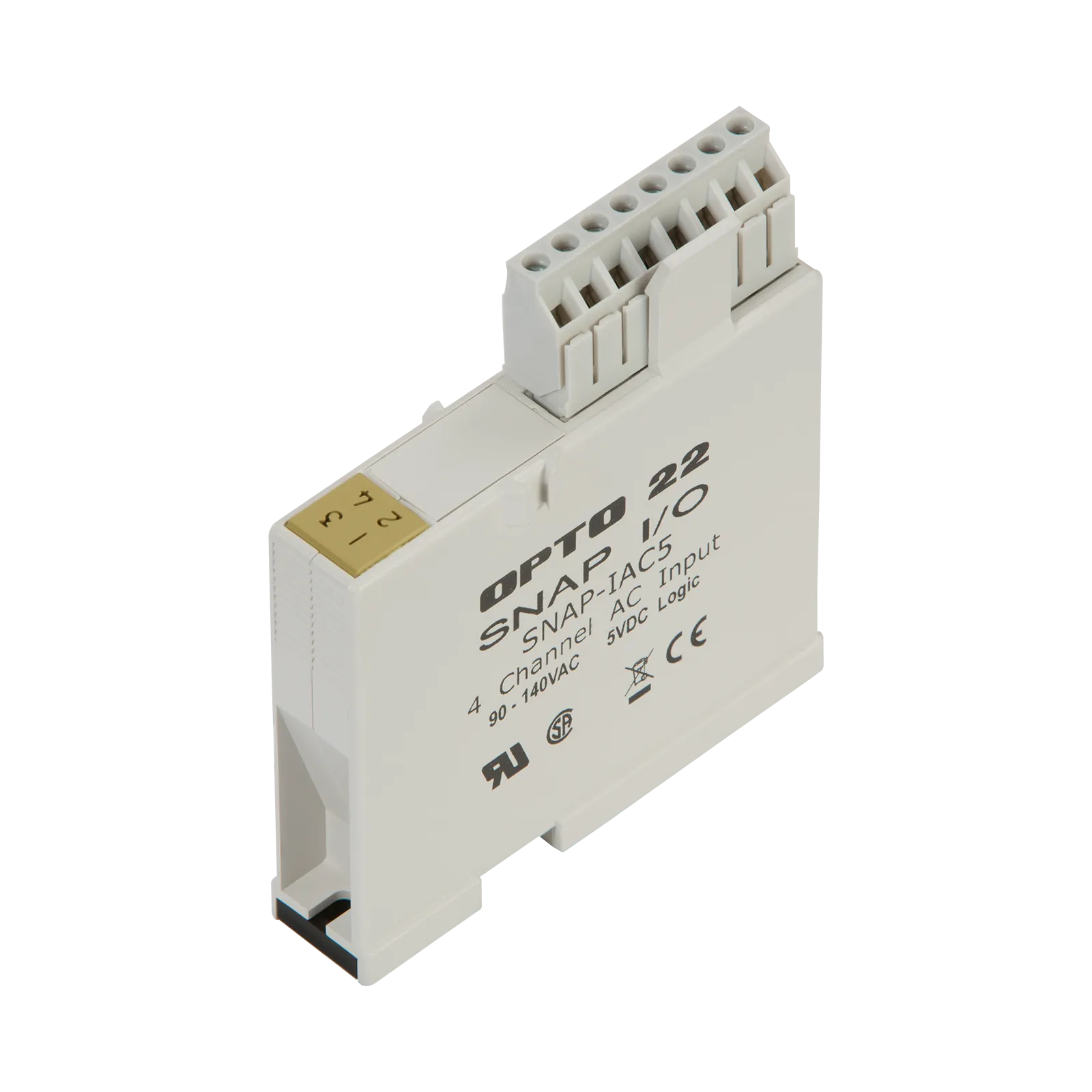

SNAP 4-Ch 90-140 VAC Digital Input Module

SNAP 4-Ch 90-140 VAC Digital Input Module

€ 0,00

SNAP 4-Ch 90-140 VAC digitaal Input Module

Out of stock

SKU: SNAP-IAC5 Categories: , Brand:

Description

The SNAP-IAC5 provides four channels of 90-140 VAC/VDC digital input. Each channel senses the on/off status for AC (or DC) voltages from sources such as proximity switches, push buttons, or auxiliary contacts. The module has removable top-mounted connectors for easy access to field wiring, as well as channel-specific LEDs for convenient troubleshooting.
For easier, faster wiring, see SNAP TEX cables and breakout boards.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC001419
  • ETIM Class: PLC digital I/O-module
  • Supply voltage DC: 4.9 - 5.1 Volt
  • Voltage type (supply voltage): DC
  • Number of digital inputs: 4
  • Power consumption: 1.25 Watt
  • Permitted voltage at input: 90 - 140 Volt
  • Type of voltage (input voltage): AC/DC
  • Short-circuit protection, outputs available: No
  • Type of electric connection: Screw connection
  • Time delay at signal change: 30 - 30 Millisecond
  • Width: 85.5 mm
  • Height: 18.3 mm
  • Depth: 90.2 mm
  • Variant: Digital Input
  • Weight: 0.1 kg

Description

The SNAP-IAC5 provides four channels of 90-140 VAC/VDC digital input. Each channel senses the on/off status for AC (or DC) voltages from sources such as proximity switches, push buttons, or auxiliary contacts. The module has removable top-mounted connectors for easy access to field wiring, as well as channel-specific LEDs for convenient troubleshooting.
For easier, faster wiring, see SNAP TEX cables and breakout boards.

Attachments
