Description

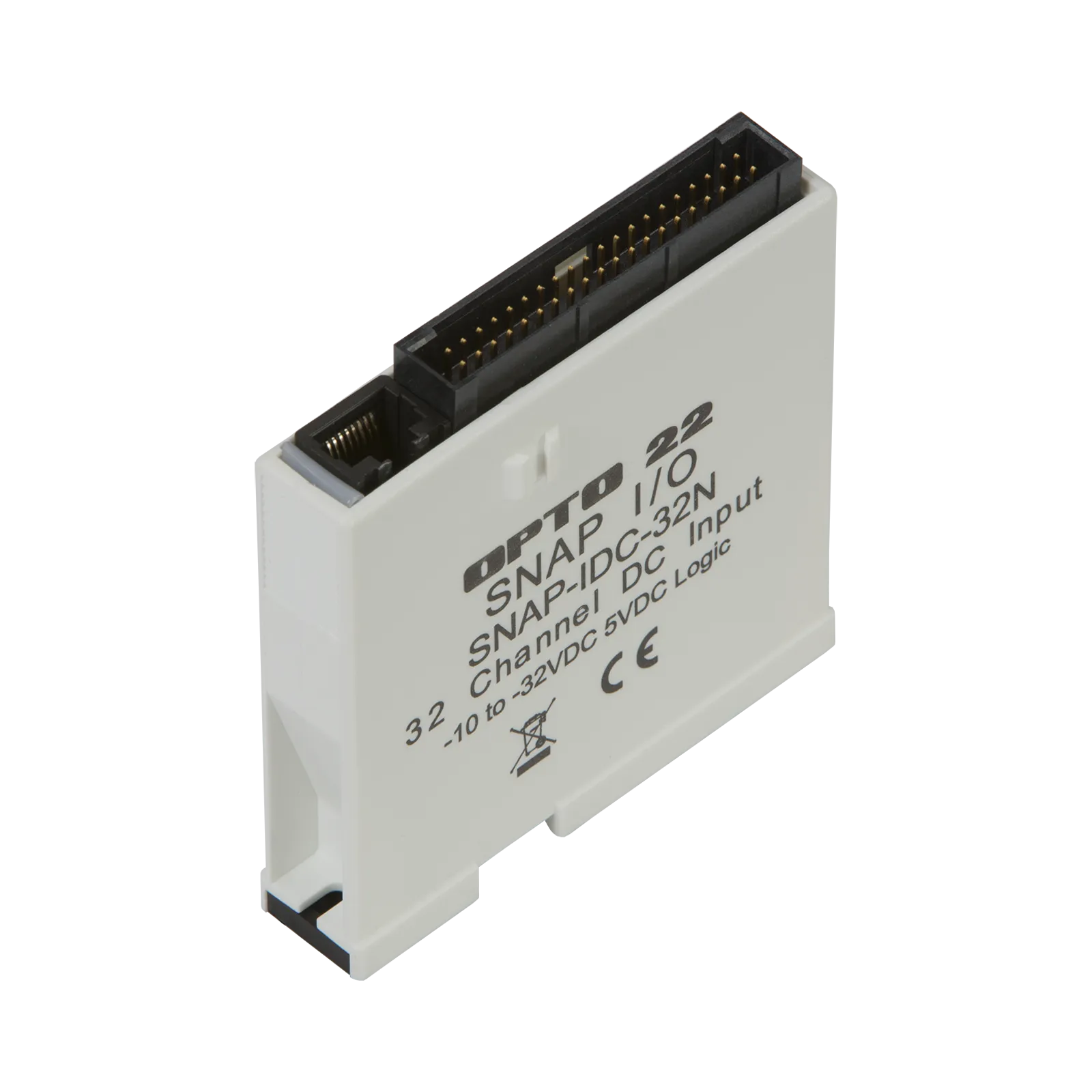

The SNAP-IDC-32N 32-channel digital input module provides 32 digital input channels in one compact SNAP module. The SNAP-IDC-32N is ideal for OEMs and others who have applications with high point counts, or for those requiring large numbers of digital input channels on one SNAP I/O rack. The high-density configuration reduces per-point costs of digital I/O systems by providing up to eight times as many I/O channels in the same space.
The SNAP-IDC-32N has an input range of -10 to -32 VDC, and its common connections are positive rather than negative, making it ideal for NPN or sinking type inputs.
For easy field wiring, use the SNAP-IDC-HDB or compact SNAP-UDC-HDB breakout rack and the SNAP-HD-BF6 header cable. A wiring harness with flying leads (SNAP-HD-CBF6) is also available.
For sensing signals with higher current, see the SNAP-UDC-HDB-G4 breakout board, which mounts G4 input modules that handle up to 3 amps per point (G4 modules are sold separately).
If you need a similar module with a lower input range, see the SNAP-IDC-32DN.
If you need a similar module with positive inputs and negative common connections instead, see the SNAP-IDC-32.
