Description

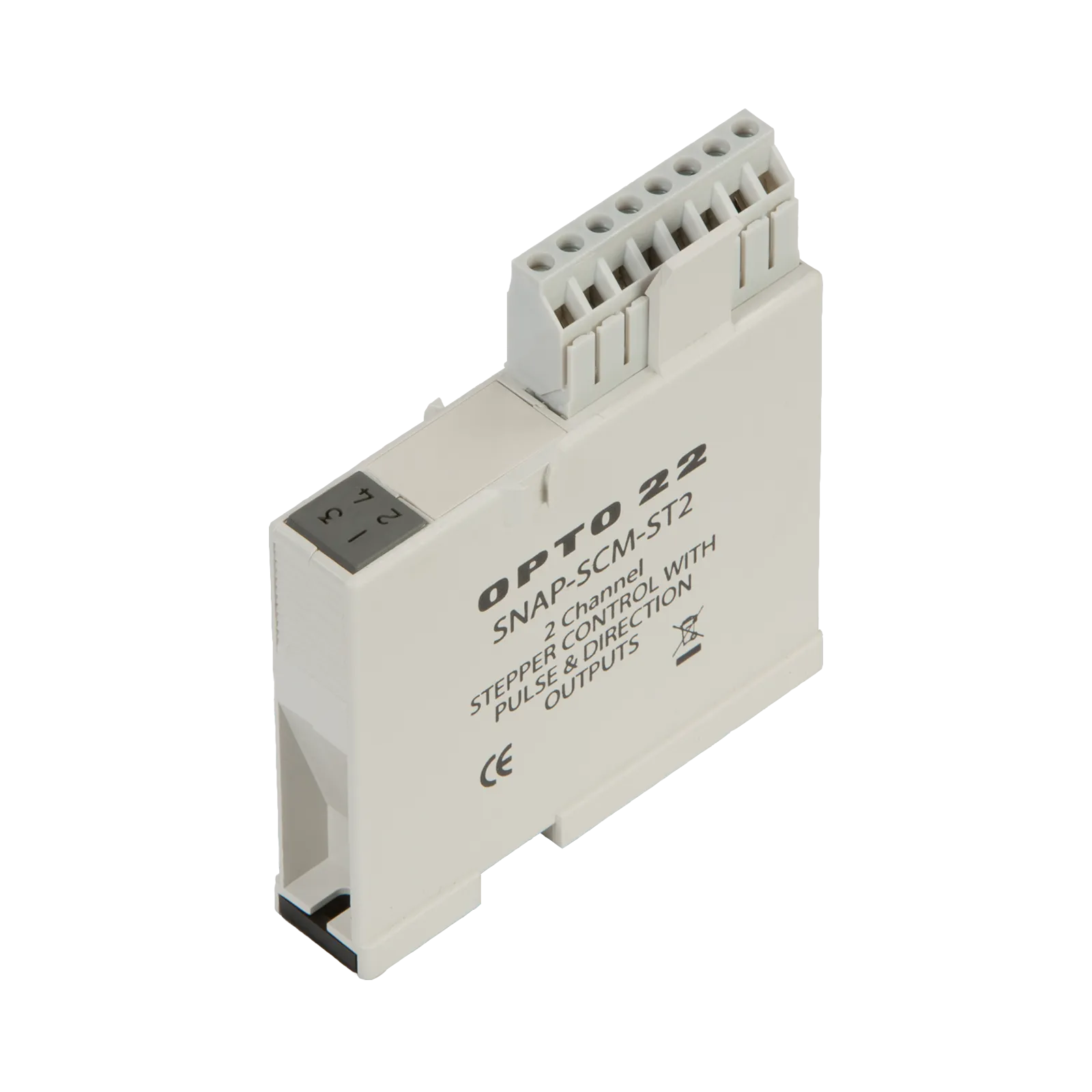

The SNAP-SCM-ST2 pulse output module is a two-channel serial communication module that provides pulse and direction signals for stepper motor drives. Each channel is isolated from the logic side. The module can either output a constant frequency, or it can ramp from one frequency to another.
The SNAP-SCM-ST2 links up to two stepper motors which can then be controlled by a SNAP PAC controller running a PAC Controlâ„¢ programming strategy. LED indicators are provided to indicate activity on each port.
The module snaps onto an Opto 22 SNAP PAC mounting rack. SNAP PAC racks accommodate up to 4, 8, 12, or 16 I/O modules, with a maximum of 8 serial modules (including SNAP-SCM-ST2) on any one rack. Because the SNAP-SCM-ST2 module is mounted on these standard racks with other SNAP I/O modules, you can use the combination of analog, digital, and serial modules required by your application at the location where they are needed.
