SNAP 8-Ch Analog Multifunction Output, Voltage or Current
Out of stock

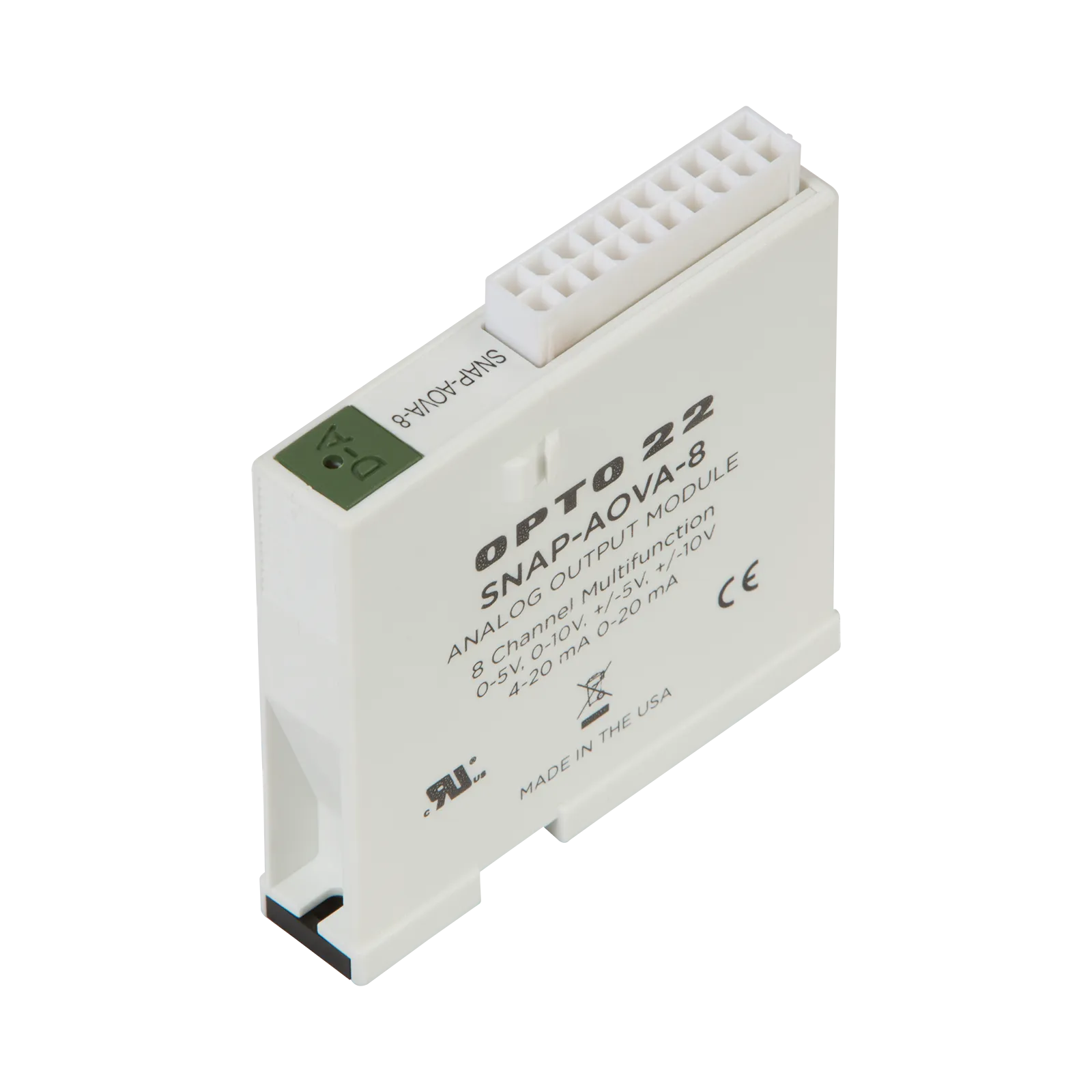

The SNAP-AOVA-8 analog output module has 8 channels, each individually configurable for any one of six voltage or current output ranges.
Voltage: 0 to 5 VDC; 0 to 10 VDC; -5 to +5 VDC; -10 to +10 VDC
Current: 4 to 20 mA; 0 to 20 mA
The SNAP-AOVA-8 requires a 24 VDC excitation voltage brought in through the field connector on the top of the module. This voltage is internally isolated with transformer and digital data isolators, and then used to source all channels.
The SNAP-AOVA-8 analog output module has 8 channels, each individually configurable for any one of six voltage or current output ranges.
Voltage: 0 to 5 VDC; 0 to 10 VDC; -5 to +5 VDC; -10 to +10 VDC
Current: 4 to 20 mA; 0 to 20 mA
The SNAP-AOVA-8 requires a 24 VDC excitation voltage brought in through the field connector on the top of the module. This voltage is internally isolated with transformer and digital data isolators, and then used to source all channels.
