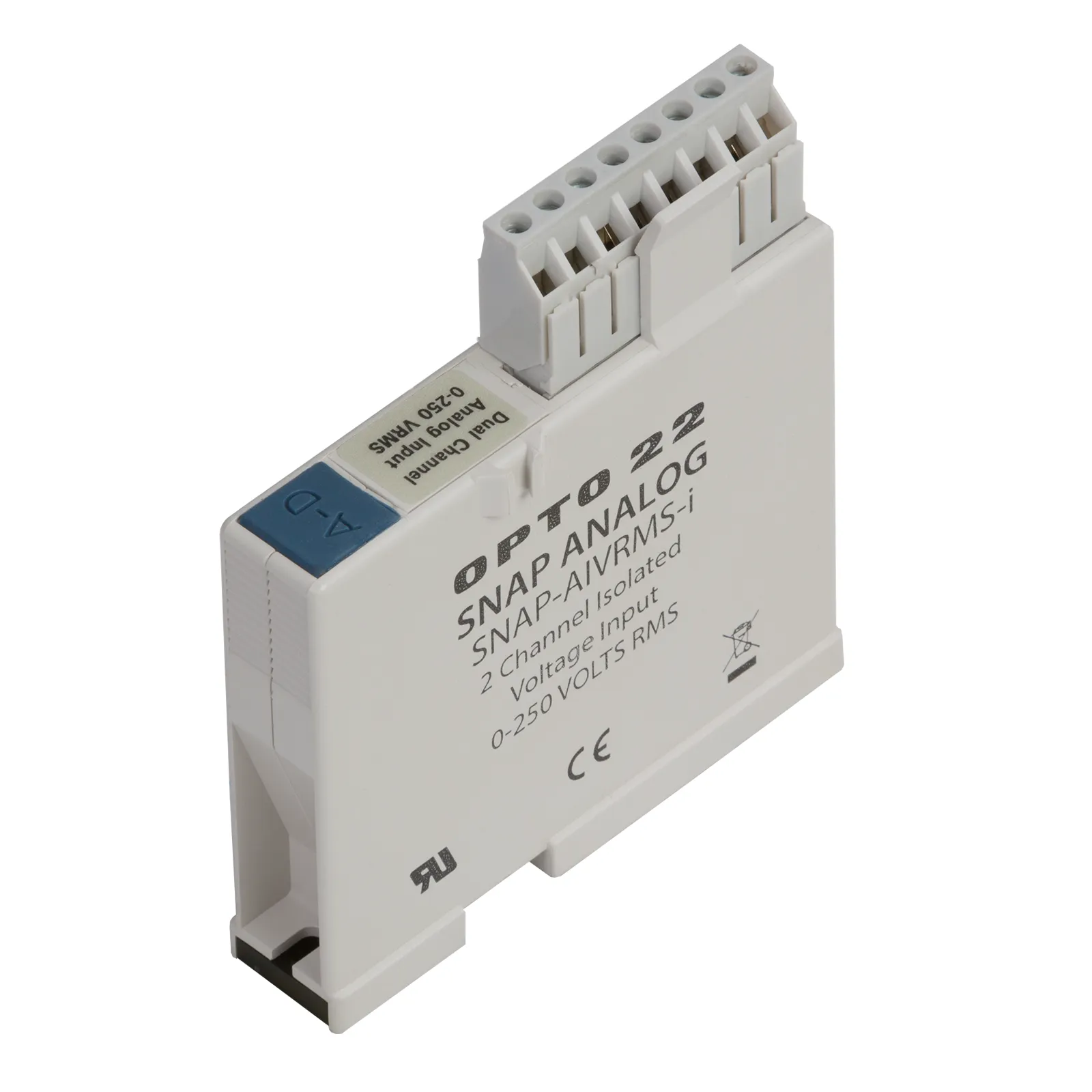

SNAP Isolated 2-Ch 0-250 V RMS AC/DC Analog Input Module, FM Approved

SNAP Isolated 2-Ch 0-250 V RMS AC/DC Analog Input Module, FM Approved

€ 0,00

SNAP Isolated 2-Ch 0-250 V RMS AC/DC Analog Input Module, FM Approved

Out of stock

SKU: SNAP-AIVRMS-I Categories: , Brand:

Description

The SNAP-AIVRMS-i module provides two isolated channels with an input range of 0 to 250 volts AC or DC. The SNAP-AIVRMS-i module may be used to monitor 120/240-volt AC/DC and 12/24/48-volt AC/DC system voltage and is ideal for differential voltage measurements.
The two channels are isolated from each other; they do not share any field connection.
If you do not need isolated channels, see SNAP-AIVRMS.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC001420
  • ETIM Class: PLC analogue I/O-module
  • Number of analogue inputs: 2
  • Analogue inputs configurable: Yes
  • Input, current: No
  • Input, voltage: Yes
  • Input, resistor: No
  • Input, resistance thermometer: No
  • Input, thermocouple: No
  • Input signal, configurable: Yes
  • Resolution of the analogue inputs: 14 bit
  • Type of electric connection: Screw-/spring clamp connection
  • Width: 85.5 mm
  • Power consumption: 1 Watt
  • Height: 18.3 mm
  • Depth: 90.2 mm
  • Variant: Analog Input
  • Weight: 0.1 kg

Description

The SNAP-AIVRMS-i module provides two isolated channels with an input range of 0 to 250 volts AC or DC. The SNAP-AIVRMS-i module may be used to monitor 120/240-volt AC/DC and 12/24/48-volt AC/DC system voltage and is ideal for differential voltage measurements.
The two channels are isolated from each other; they do not share any field connection.
If you do not need isolated channels, see SNAP-AIVRMS.

Attachments
