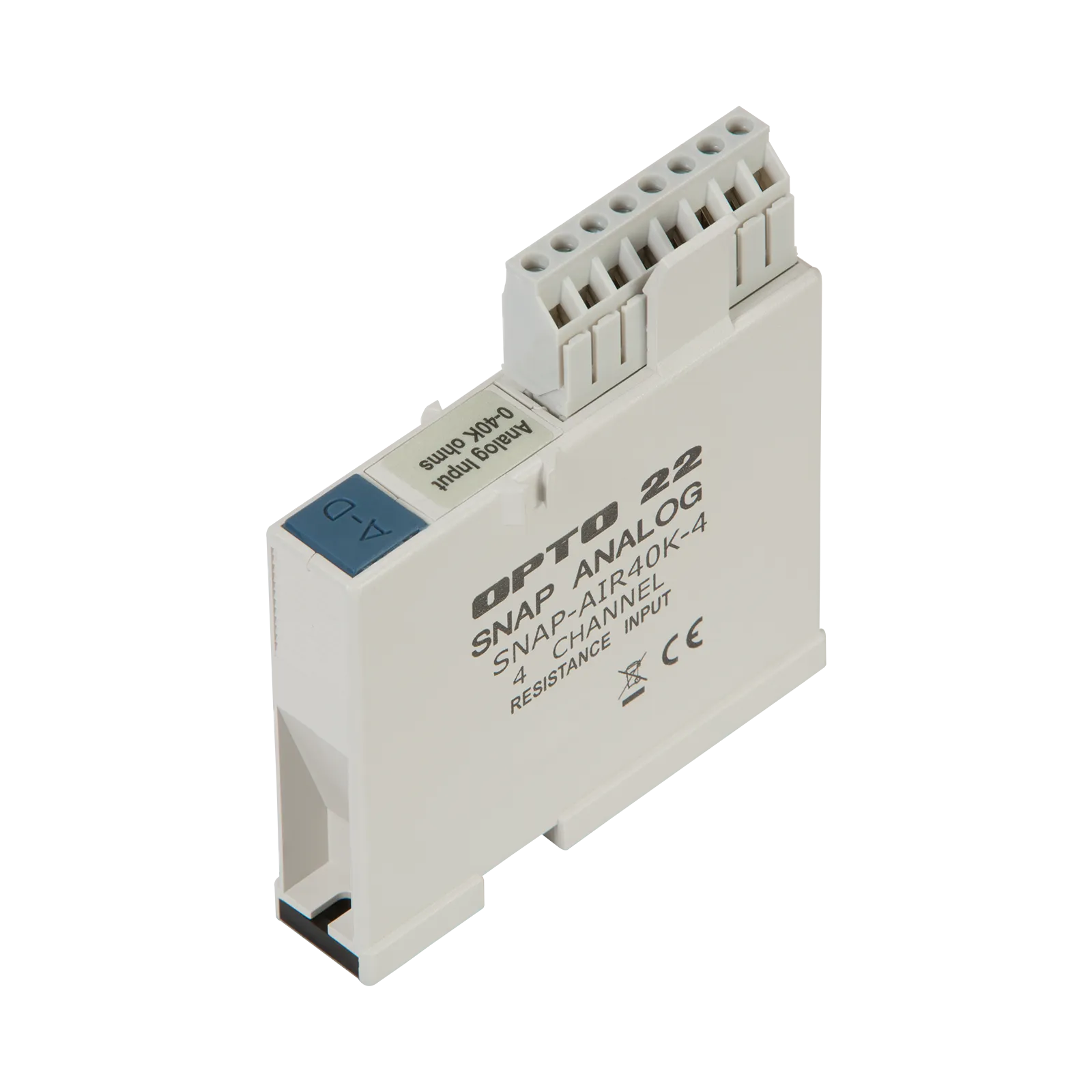

SNAP 4-Ch Analog Thermistor Input Module

SNAP 4-Ch Analog Thermistor Input Module

€ 0,00

SNAP 4-Ch Analog Thermistor Input Module

Out of stock

SKU: SNAP-AIR40K-4 Categories: , Brand:

Description

The SNAP-AIR40K-4 provides four channels of analog-to-digital conversion, ideal for thermistors used in HVAC applications or for reading the resistance of potentiometer input. Default range is 0-40 K Ohms; the module can also be configured for 0-20 K, 0-10 K, or 0-5 K Ohms. Resistance probes must be isolated from each other.
Also see the 8-channel SNAP-AIR400K-8, ideal for NTC thermistors as well as PTC thermistors.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC001420
  • ETIM Class: PLC analogue I/O-module
  • Number of analogue inputs: 4
  • Analogue inputs configurable: Yes
  • Input, current: No
  • Input, voltage: No
  • Input, resistor: Yes
  • Input, resistance thermometer: No
  • Input, thermocouple: No
  • Input signal, configurable: Yes
  • Resolution of the analogue inputs: 14 bit
  • Type of electric connection: Screw-/spring clamp connection
  • Width: 85.5 mm
  • Power consumption: 1 Watt
  • Height: 18.3 mm
  • Depth: 90.2 mm
  • Variant: Analog Input
  • Weight: 0.1 kg

Description

The SNAP-AIR40K-4 provides four channels of analog-to-digital conversion, ideal for thermistors used in HVAC applications or for reading the resistance of potentiometer input. Default range is 0-40 K Ohms; the module can also be configured for 0-20 K, 0-10 K, or 0-5 K Ohms. Resistance probes must be isolated from each other.
Also see the 8-channel SNAP-AIR400K-8, ideal for NTC thermistors as well as PTC thermistors.

Attachments
