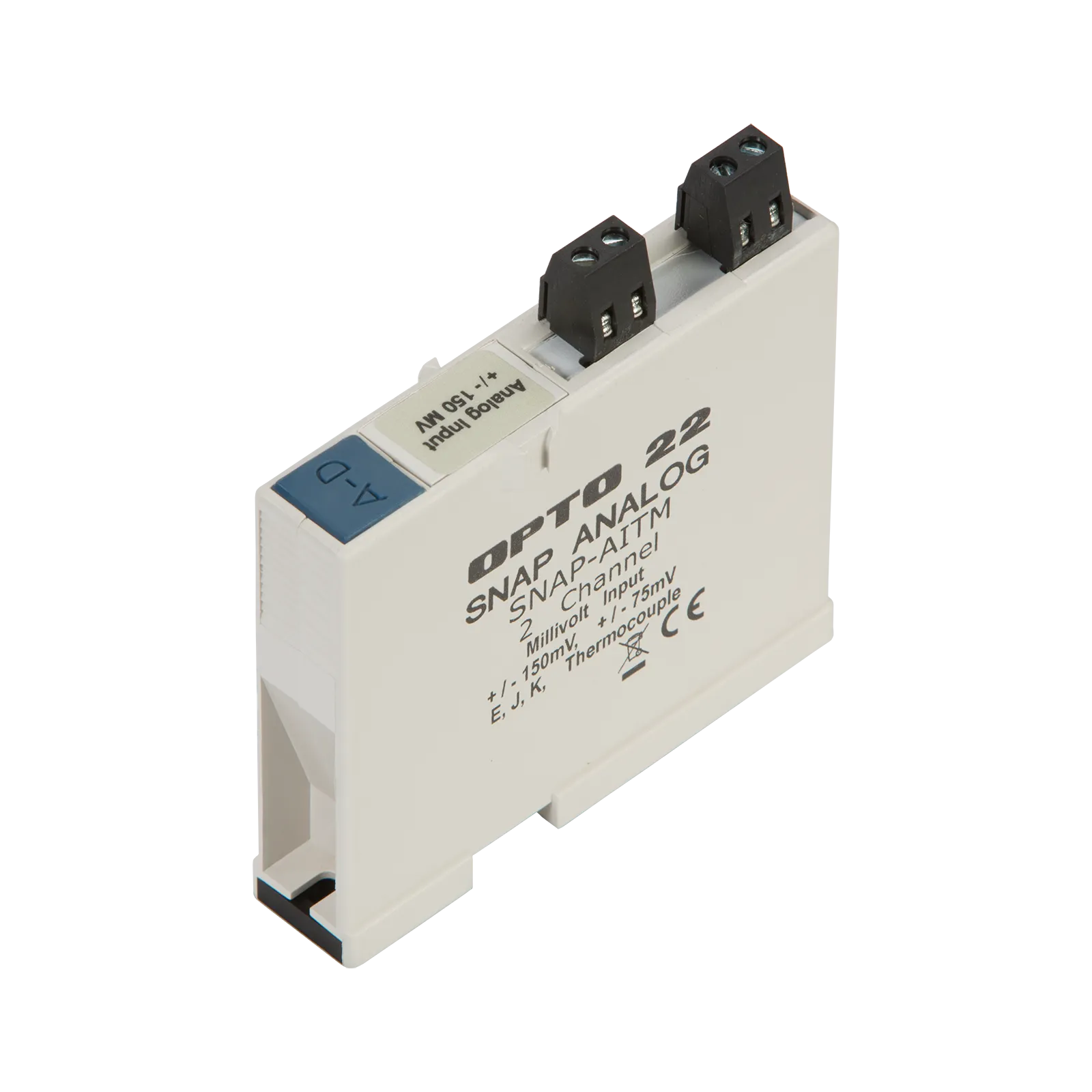

SNAP 2-Ch Type E, J, K Thermocouple or -150mV to +150mV Analog Input Module

Out of stock

SKU: SNAP-AITM Categories: , Brand:

Description

The SNAP-AITM provides two channels of analog-to-digital conversion. Each channel can be configured for -150 to +150 mV DC or -75 to +75 mV DC, or for type E, J, or K thermocouple operation. Use isolated probes for thermocouple inputs.
Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.
For a similar module offering eight channels, see SNAP-AITM-8.
For a similar module with channel-to-channel isolation, see SNAP-AITM-i.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC001420
  • ETIM Class: PLC analogue I/O-module
  • Number of analogue inputs: 2
  • Analogue inputs configurable: Yes
  • Input, current: Yes
  • Input, voltage: Yes
  • Input, resistor: No
  • Input, resistance thermometer: No
  • Input, thermocouple: Yes
  • Input signal, configurable: Yes
  • Resolution of the analogue inputs: 14 bit
  • Type of electric connection: Screw-/spring clamp connection
  • Width: 85.5 mm
  • Power consumption: 1 Watt
  • Height: 18.3 mm
  • Depth: 90.2 mm
  • Variant: Analog Input
  • Weight: 0.1 kg

Description

The SNAP-AITM provides two channels of analog-to-digital conversion. Each channel can be configured for -150 to +150 mV DC or -75 to +75 mV DC, or for type E, J, or K thermocouple operation. Use isolated probes for thermocouple inputs.
Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.
For a similar module offering eight channels, see SNAP-AITM-8.
For a similar module with channel-to-channel isolation, see SNAP-AITM-i.

Attachments
