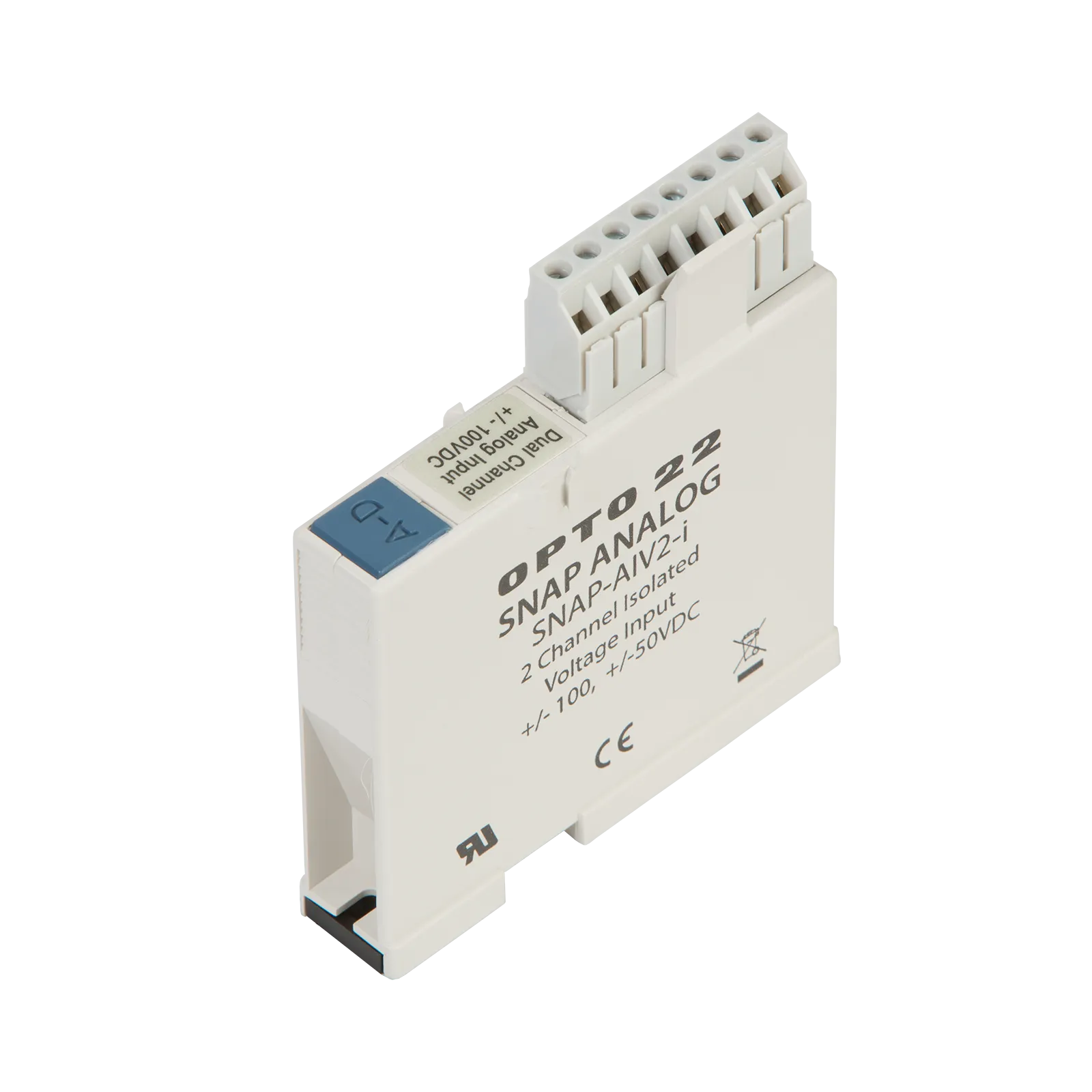

SNAP 2-Ch Isolated -100VDC to +100VDC Analog Voltage Input Module

SNAP 2-Ch Isolated -100VDC to +100VDC Analog Voltage Input Module

€ 0,00

SNAP 2-Ch Isolated -100VDC to +100VDC Analog Voltage Input Module

Out of stock

SKU: SNAP-AIV2-I Categories: , Brand:

Description

The SNAP-AIV2-i provides two isolated channels of analog voltage input, -100VDC to +100VDC. In addition to having two channels isolated from each other, the module is also transformer isolated and optically isolated from other modules and devices.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC001420
  • ETIM Class: PLC analogue I/O-module
  • Number of analogue inputs: 2
  • Analogue inputs configurable: Yes
  • Input, current: No
  • Input, voltage: Yes
  • Input, resistor: No
  • Input, resistance thermometer: No
  • Input, thermocouple: No
  • Input signal, configurable: Yes
  • Resolution of the analogue inputs: 14 bit
  • Type of electric connection: Screw-/spring clamp connection
  • Width: 85.5 mm
  • Power consumption: 1 Watt
  • Height: 18.3 mm
  • Depth: 90.2 mm
  • Variant: Analog Input
  • Weight: 0.1 kg

Description

The SNAP-AIV2-i provides two isolated channels of analog voltage input, -100VDC to +100VDC. In addition to having two channels isolated from each other, the module is also transformer isolated and optically isolated from other modules and devices.
