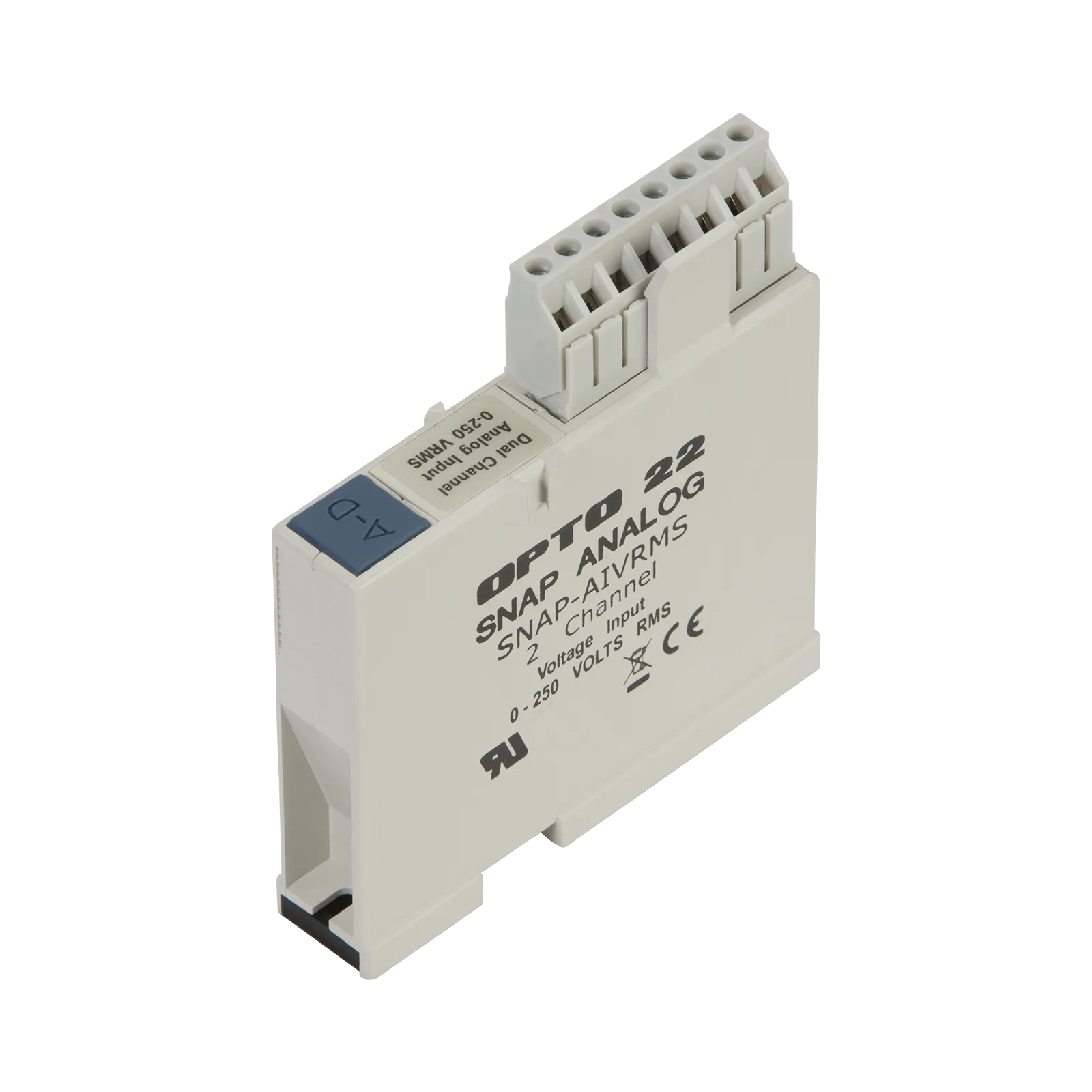

SNAP 2-Ch 0-250 V RMS AC/DC Analog Input Module

SNAP 2-Ch 0-250 V RMS AC/DC Analog Input Module

€ 0,00

SNAP 2-Ch 0-250 V RMS AC/DC Analog Input Module

Out of stock

SKU: SNAP-AIVRMS Categories: , Brand:

Description

The SNAP-AIVRMS provides two channels of 0-250 V AC or DC analog input. It may be used to monitor 120/240-volt AC/DC and 12/24/48-volt AC/DC system voltage. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.
If you need channel-to-channel isolation, see SNAP-AIVRMS-i.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC001420
  • ETIM Class: PLC analogue I/O-module
  • Number of analogue inputs: 2
  • Analogue inputs configurable: Yes
  • Input, current: No
  • Input, voltage: Yes
  • Input, resistor: No
  • Input, resistance thermometer: No
  • Input, thermocouple: No
  • Input signal, configurable: Yes
  • Resolution of the analogue inputs: 14 bit
  • Type of electric connection: Screw-/spring clamp connection
  • Width: 85.5 mm
  • Power consumption: 1 Watt
  • Height: 18.3 mm
  • Depth: 90.2 mm
  • Variant: Analog Input
  • Weight: 0.1 kg

Description

The SNAP-AIVRMS provides two channels of 0-250 V AC or DC analog input. It may be used to monitor 120/240-volt AC/DC and 12/24/48-volt AC/DC system voltage. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.
If you need channel-to-channel isolation, see SNAP-AIVRMS-i.

Attachments
