SNAP I/O Module Cable Standard Ver 6 ft

SNAP I/O Module Cable Standard Ver 6 ft

€ 0,00

SNAP I/O Module kabel Standard Ver 6 ft

Out of stock

SKU: SNAP-TEX-CBS6 Categories: , Brand:

Description

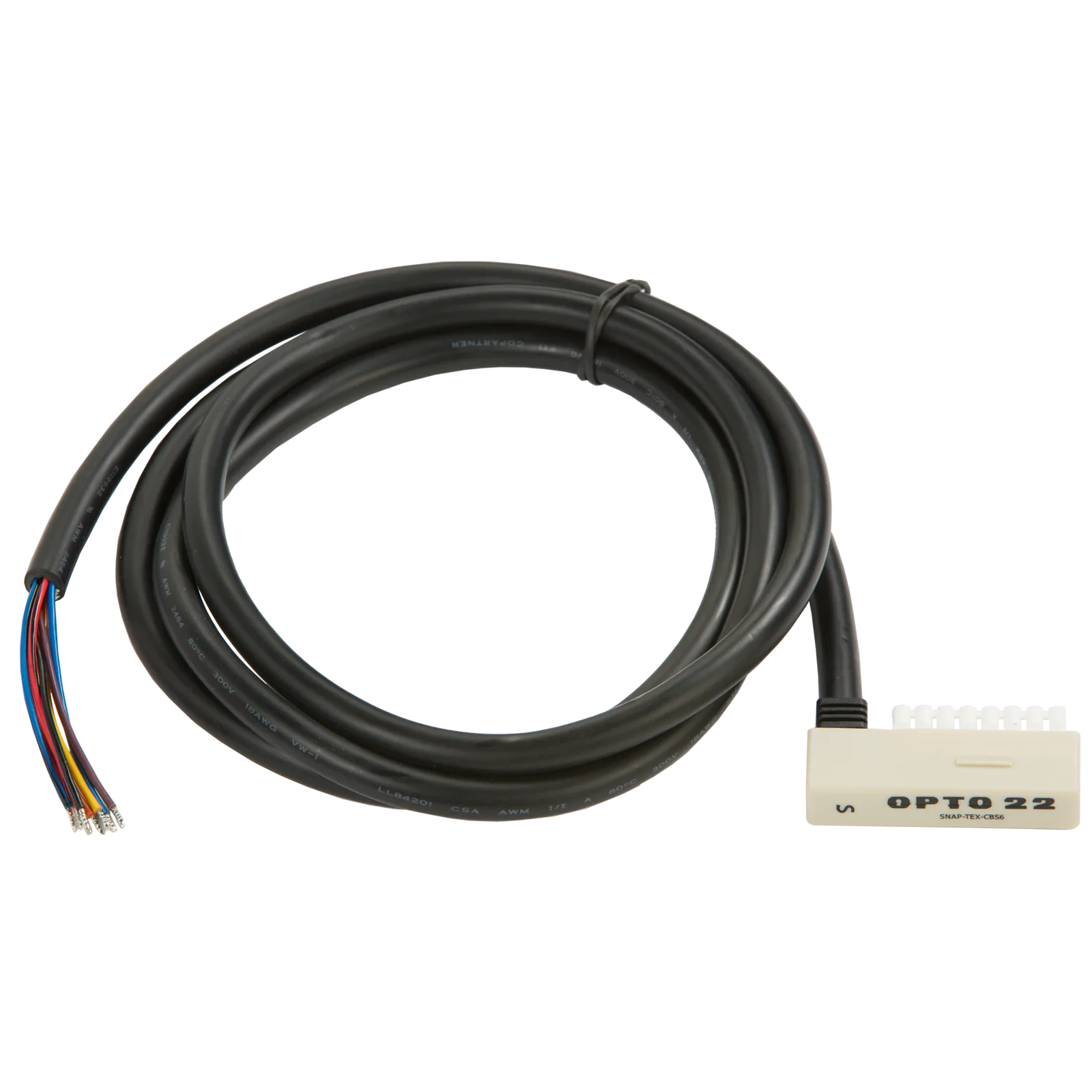

Part of the SNAP TEX family of mounting and wiring accessories, the SNAP-TEX-CBS6 cable provides neat, protected wiring from the top of a SNAP I/O module to a SNAP TEX breakout board. The cable is six feet (1.8 m) long.
Installation, maintenance, and troubleshooting are faster and simpler using SNAP TEX cables. Each cable snaps into the top of one module and terminates at the breakout board with 18-gauge, color-coded flying leads, already stripped and ready for wiring. The leads attach easily to the breakout board with spring connectors.
NOTE: On the SNAP-TEX-CBS6, wiring is straight through; there are no terminal connections. This cable can be used with many digital and analog input and output modules.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC000237
  • ETIM Class: PLC connection cable
  • Function: PLC - other devices
  • Length: 1.8 Metre
  • Suitable for input board PLC: Yes
  • Suitable for output card PLC: Yes
  • Suitable for digital signals: Yes
  • Suitable for analogue signals: Yes
  • Type of electrical connection, field-sided: Cable end sleeve
  • Type of electrical connection, box-sided: Other
  • Number of poles: 8
  • Variant: Cable
  • Width: 1800 mm
  • Height: 80 mm
  • Depth: 10 mm
  • Weight: 0.3 kg

Description

Part of the SNAP TEX family of mounting and wiring accessories, the SNAP-TEX-CBS6 cable provides neat, protected wiring from the top of a SNAP I/O module to a SNAP TEX breakout board. The cable is six feet (1.8 m) long.
Installation, maintenance, and troubleshooting are faster and simpler using SNAP TEX cables. Each cable snaps into the top of one module and terminates at the breakout board with 18-gauge, color-coded flying leads, already stripped and ready for wiring. The leads attach easily to the breakout board with spring connectors.
NOTE: On the SNAP-TEX-CBS6, wiring is straight through; there are no terminal connections. This cable can be used with many digital and analog input and output modules.
