Compact Breakout Rack for SNAP 32-channel digital (discrete) input or output module

Compact Breakout Rack for SNAP 32-channel digital (discrete) input or output module

€ 0,00

Compact Breakout Rack for SNAP 32-kanaals digitaal (discrete) input or output module

Out of stock

SKU: SNAP-UDC-HDB Categories: , Brand:

Description

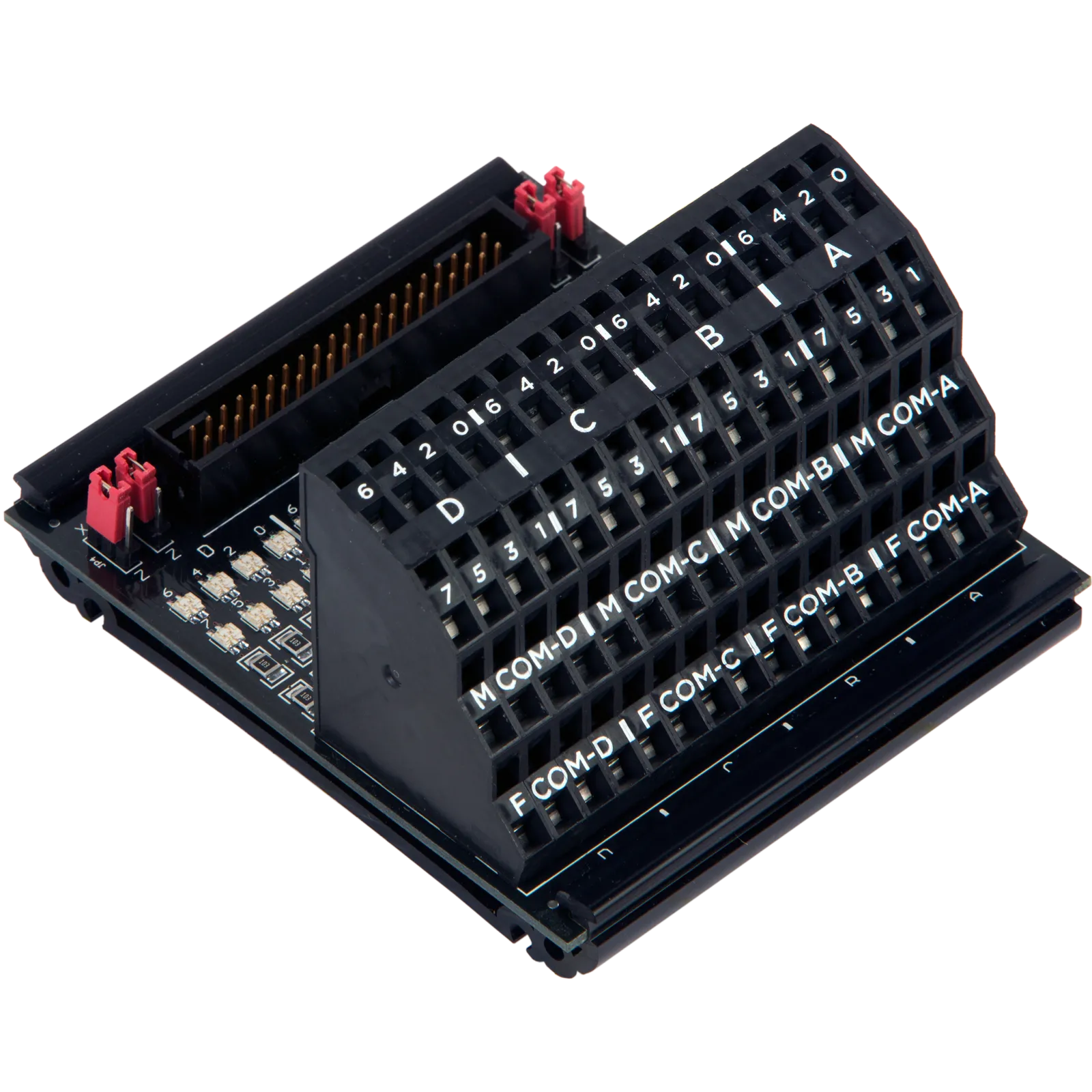

The small-footprint SNAP-UDC-HDB breakout board consolidates wiring for a 32-point SNAP high-density digital (HDD) I/O module into a small area.
Its universal design means the SNAP-UDC-HDB can be used with either SNAP 32-point input modules (like the SNAP-IDC-32) or SNAP 32-point output modules (such as the SNAP-ODC-32-SNK or SNAP-ODC-32-SRC).
This breakout board is ideal for tight locations. To save space, it does not provide fuses. Spring-clamp wiring connectors make wiring the board faster and simpler.
Connect the SNAP 32-point module to the board using a SNAP-HD-BF6 cable.

Attachments

Product features

  • Model: SNAP
  • ETIM Code: EC000276
  • ETIM Class: Distribution terminal block
  • Core cross section: 0.25 Square millimetre
  • Number of poles: 64
  • With seal head: No
  • Variant: Accessory
  • Width: 100.3 mm
  • Height: 84.3 mm
  • Depth: 57.7 mm
  • Weight: 1 kg

Description

The small-footprint SNAP-UDC-HDB breakout board consolidates wiring for a 32-point SNAP high-density digital (HDD) I/O module into a small area.
Its universal design means the SNAP-UDC-HDB can be used with either SNAP 32-point input modules (like the SNAP-IDC-32) or SNAP 32-point output modules (such as the SNAP-ODC-32-SNK or SNAP-ODC-32-SRC).
This breakout board is ideal for tight locations. To save space, it does not provide fuses. Spring-clamp wiring connectors make wiring the board faster and simpler.
Connect the SNAP 32-point module to the board using a SNAP-HD-BF6 cable.

Attachments
