DC discr. output, 12 ch., 5-60 VDC, ch-to-ch isol.

DC discr. output, 12 ch., 5-60 VDC, ch-to-ch isol.

€ 0,00

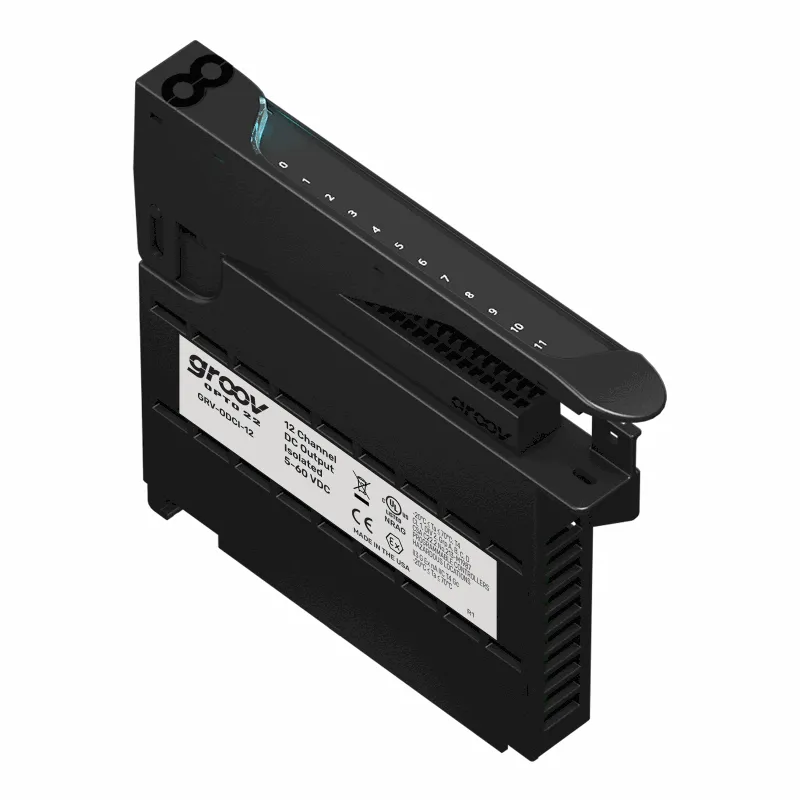

DC discrete output, 12 channels, 5-60 VDC, channel-to-channel isolation

Out of stock

SKU: GRV-ODCI-12 Categories: , Brand:

Description

Part of the groov EPIC® system, the GRV-ODCI-12 digital DC output module offers 12 channels of 5–60 VDC output, each switching a separate DC load. The module’s 12 channels are isolated from each other (channel-to-channel isolation), and it features channel-specific LEDs for troubleshooting.The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

Attachments

Product features

  • Model: Groov
  • ETIM Code: EC001419
  • ETIM Class: PLC digital I/O-module
  • Voltage type (supply voltage): DC
  • Number of digital outputs: 12
  • Digital outputs configurable: No
  • Power consumption: 1.2 Watt
  • Type of digital output: Transistor
  • Output, current: 0.4 Ampere
  • Permitted voltage at output: 5 - 60 Volt
  • Type of output voltage: DC
  • Type of electric connection: Spring clamp connection
  • Time delay at signal change: 2.5 - 2.5 Millisecond
  • Width: 155 mm
  • Height: 138 mm
  • Depth: 20 mm
  • Variant: Digital output modules

Description

Part of the groov EPIC® system, the GRV-ODCI-12 digital DC output module offers 12 channels of 5–60 VDC output, each switching a separate DC load. The module’s 12 channels are isolated from each other (channel-to-channel isolation), and it features channel-specific LEDs for troubleshooting.The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

Attachments
