AC discr. input, 24 ch., 180-280 VAC

AC discr. input, 24 ch., 180-280 VAC

€ 0,00

AC discrete input, 24 channels, 180-280 VAC

Out of stock

SKU: GRV-IACHV-24 Categories: , Brand:

Description

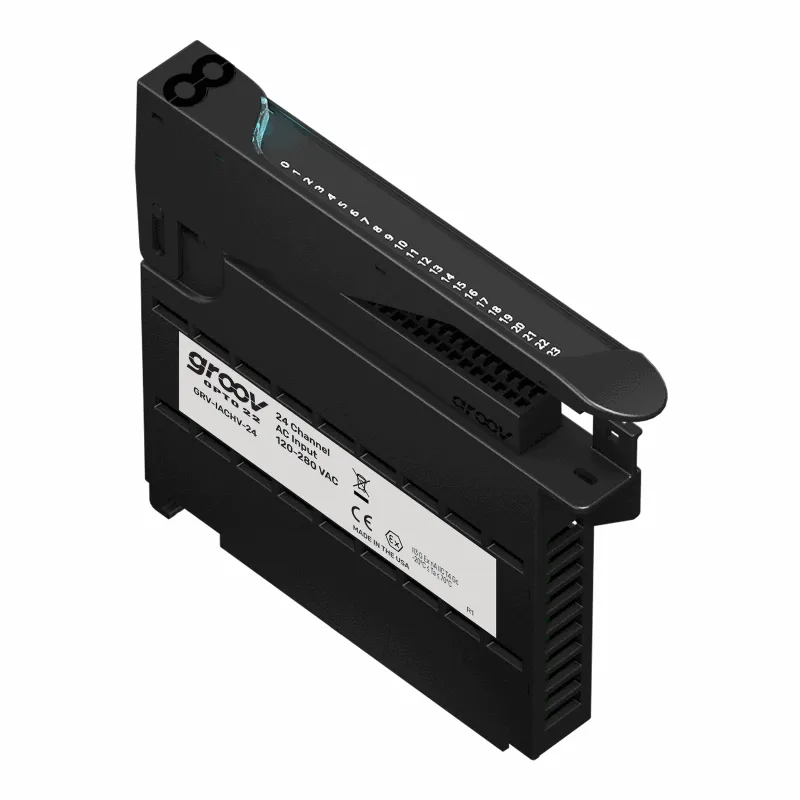

Part of the groov EPIC® system, the GRV-IACHV-24 AC digital input module can sense status from up to 24 devices such as pumps, fans, and motors that use a 180–280 VAC signal. Field devices are isolated from the logic side of the module, but channels are not isolated from each other: they share a common connection inside the module. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

Attachments

Product features

  • Model: Groov
  • ETIM Code: EC001419
  • ETIM Class: PLC digital I/O-module
  • Voltage type (supply voltage): DC
  • Number of digital inputs: 24
  • Digital inputs configurable: No
  • Digital outputs configurable: No
  • Power consumption: 1 Watt
  • Permitted voltage at input: 180 - 280 Volt
  • Type of voltage (input voltage): AC/DC
  • Type of electric connection: Spring clamp connection
  • Time delay at signal change: 30 - 30 Millisecond
  • Width: 155 mm
  • Height: 138 mm
  • Depth: 20 mm
  • Variant: Digital input modules

Description

Part of the groov EPIC® system, the GRV-IACHV-24 AC digital input module can sense status from up to 24 devices such as pumps, fans, and motors that use a 180–280 VAC signal. Field devices are isolated from the logic side of the module, but channels are not isolated from each other: they share a common connection inside the module. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

Attachments
