Analog output, 8 ch., V or mA, ch-to-ch isol., powered loop

Analog output, 8 ch., V or mA, ch-to-ch isol., powered loop

€ 0,00

Analog output, 8 channels, voltage or current, channel-to-channel isolation, field or chassis-powered loop

Out of stock

SKU: GRV-OVMAILP-8 Categories: , Brand:

Description

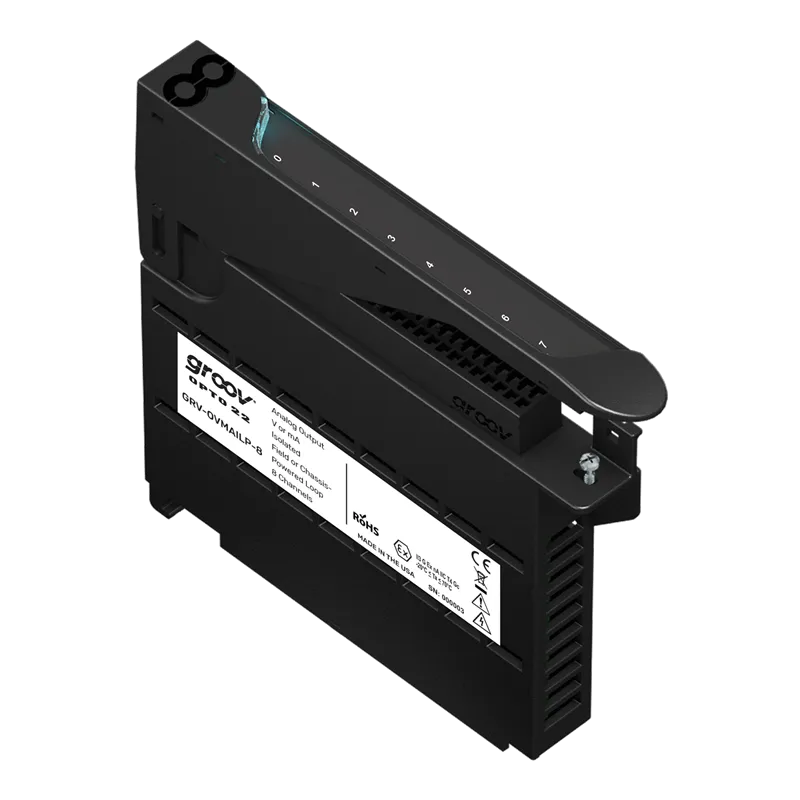

Part of the groov EPIC® system, the GRV-OVMAILP-8 analog output module has 8 channels, individually configurable for any one of five voltage or current output ranges: 0 to 5 VDC / 0 to 10 VDC / 0 to 22 mA / 4 to 20 mA / 0 to 20 mA

Attachments

Product features

  • Model: Groov
  • ETIM Code: EC001420
  • ETIM Class: PLC analogue I/O-module
  • Number of analogue outputs: 8
  • Analogue outputs configurable: Yes
  • Output, current: Yes
  • Output, voltage: Yes
  • Output signal configurable: Yes
  • Resolution of the analogue outputs: 12 bit
  • Type of electric connection: Spring clamp connection
  • Width: 155 mm
  • Power consumption: 6 Watt
  • Height: 138 mm
  • Depth: 20 mm
  • Variant: Analog output modules

Description

Part of the groov EPIC® system, the GRV-OVMAILP-8 analog output module has 8 channels, individually configurable for any one of five voltage or current output ranges: 0 to 5 VDC / 0 to 10 VDC / 0 to 22 mA / 4 to 20 mA / 0 to 20 mA

Attachments
