AC/DC discr. output, 8 ch., Form C relay, 0-250 VAC/5-30 VDC, 5 A

AC/DC discr. output, 8 ch., Form C relay, 0-250 VAC/5-30 VDC, 5 A

€ 0,00

AC/DC discrete output, 8 channels, electromechanical Form C relay, 0-250 VAC/5-30 VDC, 5 A

Out of stock

SKU: GRV-OMRIS-8 Categories: , Brand:

Description

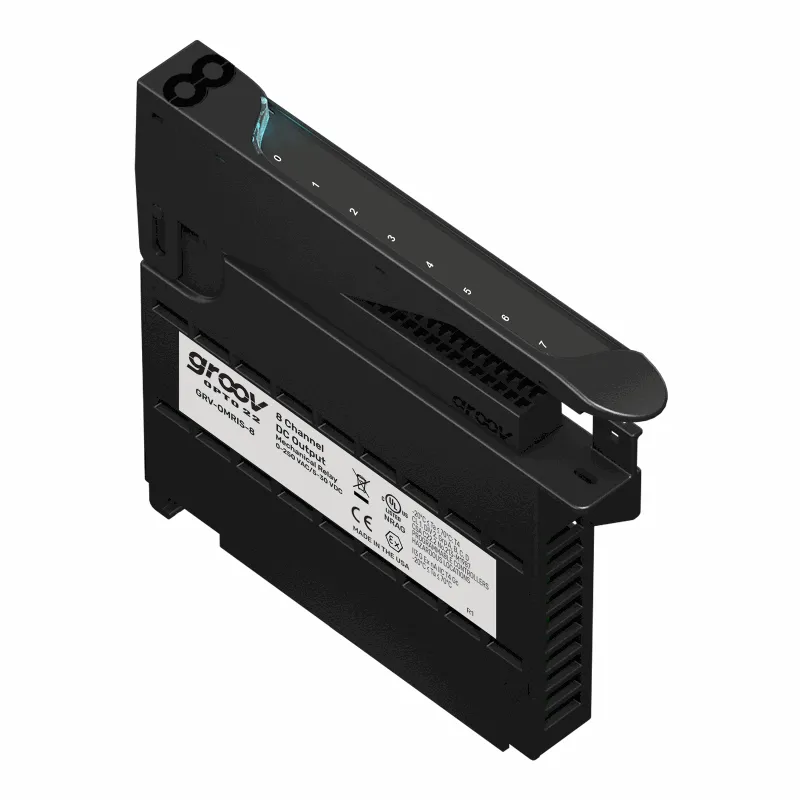

Part of the groov EPIC® system, the GRV-OMRIS-8 is a mechanical relay output module that offers 8 channels for switching loads of up to 5 amps at 250 VAC or 30 VDC. These are form C relays, so each of the 8 mechanical relays can be wired as normally open or normally closed. Fusing is not provided; you must provide fusing when wiring the module. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

Attachments

Product features

  • Model: Groov
  • ETIM Code: EC001419
  • ETIM Class: PLC digital I/O-module
  • Voltage type (supply voltage): DC
  • Number of digital outputs: 8
  • Digital outputs configurable: No
  • Power consumption: 1.4 Watt
  • Type of digital output: Relay
  • Output, current: 5 Ampere
  • Permitted voltage at output: 0 - 250 Volt
  • Type of output voltage: AC/DC
  • Type of electric connection: Spring clamp connection
  • Time delay at signal change: 4 - 8 Millisecond
  • Width: 155 mm
  • Height: 138 mm
  • Depth: 20 mm
  • Variant: Digital output modules

Description

Part of the groov EPIC® system, the GRV-OMRIS-8 is a mechanical relay output module that offers 8 channels for switching loads of up to 5 amps at 250 VAC or 30 VDC. These are form C relays, so each of the 8 mechanical relays can be wired as normally open or normally closed. Fusing is not provided; you must provide fusing when wiring the module. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

Attachments
