Analog input, 24 ch., 8 conf. ±160 V to ±1.25 VDC, no ch-to-ch isol.

Analog input, 24 ch., 8 conf. ±160 V to ±1.25 VDC, no ch-to-ch isol.

€ 0,00

Analog voltage input, 24 channels, 8 configurable input ranges from ±160 V to ±1.25 VDC, no channel-to-channel isolation

Out of stock

SKU: GRV-IV-24 Categories: , Brand:

Description

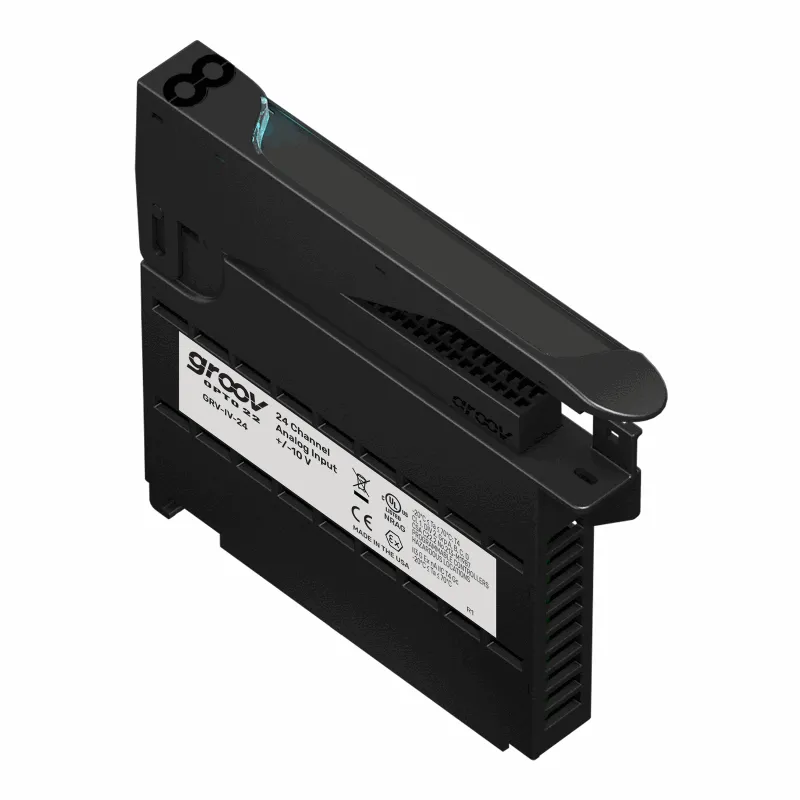

Part of the groov EPIC® system, the GRV-IV-24 analog module can be configured for any one of the following eight input ranges on each of its 24 input channels: ±160.0 VDC / ±80.0 VDC/ ±40.0 VDC / ±20.0 VDC / ±10.0 VDC / ±5.0 VDC / ±2.5 VDC / ±1.25 VDC

Attachments

Product features

  • Model: Groov
  • ETIM Code: EC001420
  • ETIM Class: PLC analogue I/O-module
  • Number of analogue inputs: 24
  • Analogue inputs configurable: Yes
  • Input, current: No
  • Input, voltage: Yes
  • Input, resistor: No
  • Input, resistance thermometer: No
  • Input, thermocouple: No
  • Input signal, configurable: Yes
  • Resolution of the analogue inputs: 20 bit
  • Type of electric connection: Spring clamp connection
  • Width: 155 mm
  • Power consumption: 1 Watt
  • Height: 138 mm
  • Depth: 20 mm
  • Variant: Analog input modules

Description

Part of the groov EPIC® system, the GRV-IV-24 analog module can be configured for any one of the following eight input ranges on each of its 24 input channels: ±160.0 VDC / ±80.0 VDC/ ±40.0 VDC / ±20.0 VDC / ±10.0 VDC / ±5.0 VDC / ±2.5 VDC / ±1.25 VDC
