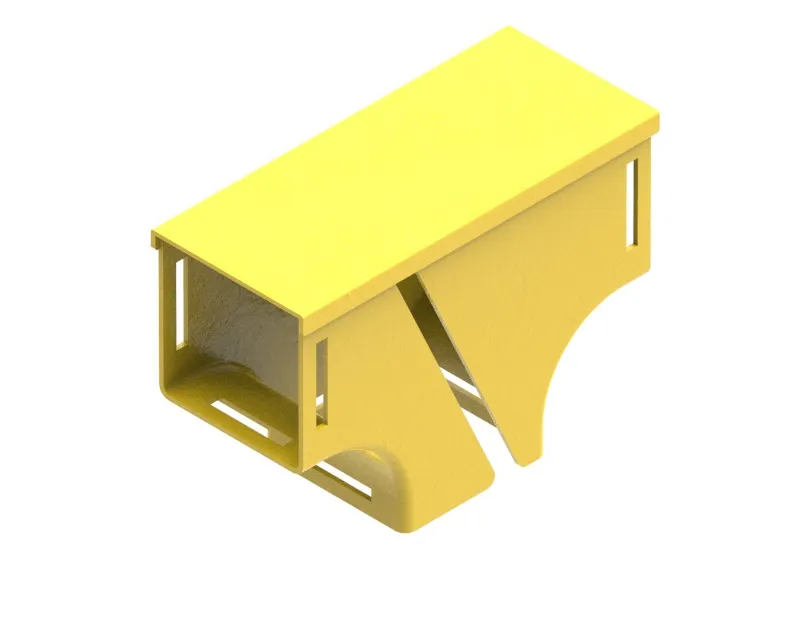

intra Suite Assembly Retrofit 50mm duct

Intra Suite Assembly Retrofit 50mm Duct

€ 0,00

• Clips straight into joiner
• Tough, fire retardant material
• Joiners (Part No: TC1279-73, Telstra S 353/00788); available separately.
• Purchase by the unit

Out of stock

SKU: TC1279-145R Categories: , , Brand:

Description

This product provides a vertical or horizontal tee with any 50mm straight ducting. It is used to feed optical fibre cord to a level above and below the existing level, to either a rack or other ducting. It is slotted to allow retro – fitting of fibre cords, without the need for removal of the Duct System parts. It requires a standard joiner (Part No: TC1279-73), at each interface, which provides a smooth and strong joint.

Attachments

Product features

  • ETIM Code: EC001544
  • Suitable for cable tray width: 50 Millimetre
  • ETIM Class: Tee for cable tray
  • Suitable for cable tray height: 50 Millimetre
  • Construction type: T-piece vertical falling along
  • For connection with screws: No
  • For screwless connection: Yes
  • Model: Tees
  • Inner radius: 30 Millimetre
  • Material: Plastic
  • Colour: Yellow
  • Width: 92 mm
  • Height: 53 mm
  • Depth: 128 mm
  • Weight: 0.055 kg
  • Material quality: Other
  • RAL-number: 1026
  • NATO-mounting holes: No
  • Suitable for circuit integrity: No
  • Stainless steel, pickled: No
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This product provides a vertical or horizontal tee with any 50mm straight ducting. It is used to feed optical fibre cord to a level above and below the existing level, to either a rack or other ducting. It is slotted to allow retro – fitting of fibre cords, without the need for removal of the Duct System parts. It requires a standard joiner (Part No: TC1279-73), at each interface, which provides a smooth and strong joint.
