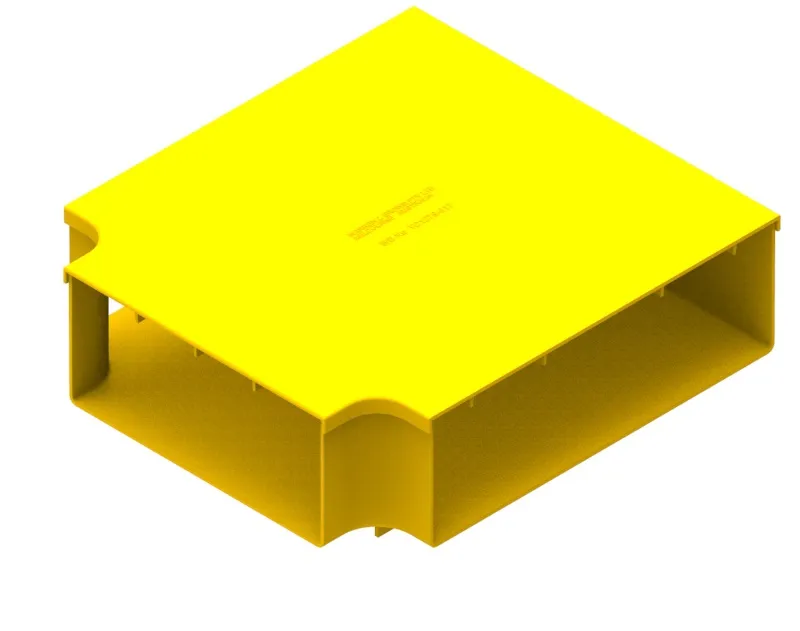

300mm to 220mm Tee Assembly

300mm To 220mm Tee Assembly

€ 0,00

• Includes cover (Part No: TC1279-317)
• Joiners for 300mm x 100mm duct and 220mm x 100mm duct, are available separately
• Ribs included for extra strength
• Tough, fire retardant material
• Also available without cover; as Part No: TC 1279-316
• Purchase by the unit

Out of stock

SKU: TC1279-316A Categories: , , Brand:

Description

This tee is used to provide a 220mm tee intersection with standard 300mm straight ducting. Also needed are joiners for 300mm x 100mm duct; either: standard joiners (Part No: TC1279-320KIT) or slotless joiners (Part No: TC1279-287A); and joiners for 220mm x 100mm duct; either: standard joiners (Part No: TC1279-25) or slotless joiners (Part No: TC1279-250A); are available separately. All the joiners for the duct connections provide a smooth and strong joint, with mating items.

Attachments

Product features

  • ETIM Code: EC001544
  • Suitable for cable tray width: 300 Millimetre
  • ETIM Class: Tee for cable tray
  • Suitable for cable tray height: 100 Millimetre
  • Construction type: T-piece horizontal
  • For connection with screws: No
  • For screwless connection: Yes
  • Model: Tees
  • Inner radius: 30 Millimetre
  • Material: Plastic
  • Colour: Yellow
  • Width: 325 mm
  • Height: 105 mm
  • Depth: 360 mm
  • Weight: 1 kg
  • Material quality: Other
  • RAL-number: 1026
  • NATO-mounting holes: No
  • Suitable for circuit integrity: No
  • Stainless steel, pickled: No
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This tee is used to provide a 220mm tee intersection with standard 300mm straight ducting. Also needed are joiners for 300mm x 100mm duct; either: standard joiners (Part No: TC1279-320KIT) or slotless joiners (Part No: TC1279-287A); and joiners for 220mm x 100mm duct; either: standard joiners (Part No: TC1279-25) or slotless joiners (Part No: TC1279-250A); are available separately. All the joiners for the duct connections provide a smooth and strong joint, with mating items.

Attachments
