300mm Duct Extrusion - Inc Slots
300mm Duct Extrusion - Inc Slots

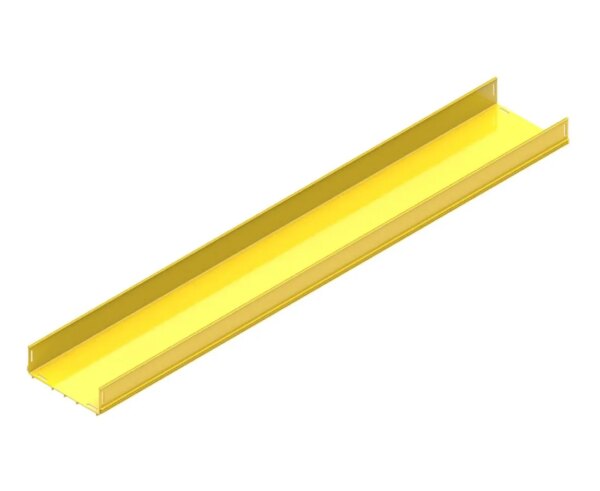

300mm Duct Extrusion – Inc Slots

€ 0,00

• Clips straight into the slotless joiner (Part No: TC1279‐287A)
• Tough, fire retardant material
• Slotless Joiners (Part No: TC1279‐287A); available separately.
• Also available without the lid, as straight duct (Part No: TC1279‐275)
• Purchase by the unit

1 in stock

SKU: TC1279-275 Categories: , ,

Description

It is recommended that a duct be filled to about 50% of its depth with optical fibre cords. Thus, a 300 mm wide duct typically can carry about 5850 of 1.6mm dia optical fibre cords or about 1650 of 3mm dia. optical fibre cords, without causing excessive stress on them. De duct is made of tough Noryl plastic with a non ‐ halogen fire retardent. The cover does not have hinges; it clips onto the duct. The duct connects to other 300mm duct sections and various bends, adapters etc., using the slotless joiner (Part No: TC1279‐287A). A duct mounting Kit (Part No: TC1279‐297KIT), is available separately

Product features

  • ETIM Code: EC000047
  • ETIM Class: Cable tray
  • Height: 115 mm
  • Width: 312 mm
  • Material thickness: 3 Millimetre
  • Length: 2000 Millimetre
  • Working length: 2000 Millimetre
  • Usable cross section: 27636 Square millimetre
  • With cover: No
  • Side perforation: Yes
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Straight duct length
  • Type of connection: Click in mounting
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Material quality: Other
  • Surface protection: Untreated
  • Colour: Yellow
  • RAL-number: 1026
  • Weight: 3.74 kg
  • Possible support spacing: 1 - 1.5 Metre
  • Safe working load according to IEC 61537 with support spacing 1.5 m: 350 Newton per metre
  • Variant: yellow
  • Depth: 2000 mm
  • Working temperature: -20 - 70 Degrees celsius

Description

It is recommended that a duct be filled to about 50% of its depth with optical fibre cords. Thus, a 300 mm wide duct typically can carry about 5850 of 1.6mm dia optical fibre cords or about 1650 of 3mm dia. optical fibre cords, without causing excessive stress on them. De duct is made of tough Noryl plastic with a non ‐ halogen fire retardent. The cover does not have hinges; it clips onto the duct. The duct connects to other 300mm duct sections and various bends, adapters etc., using the slotless joiner (Part No: TC1279‐287A). A duct mounting Kit (Part No: TC1279‐297KIT), is available separately
