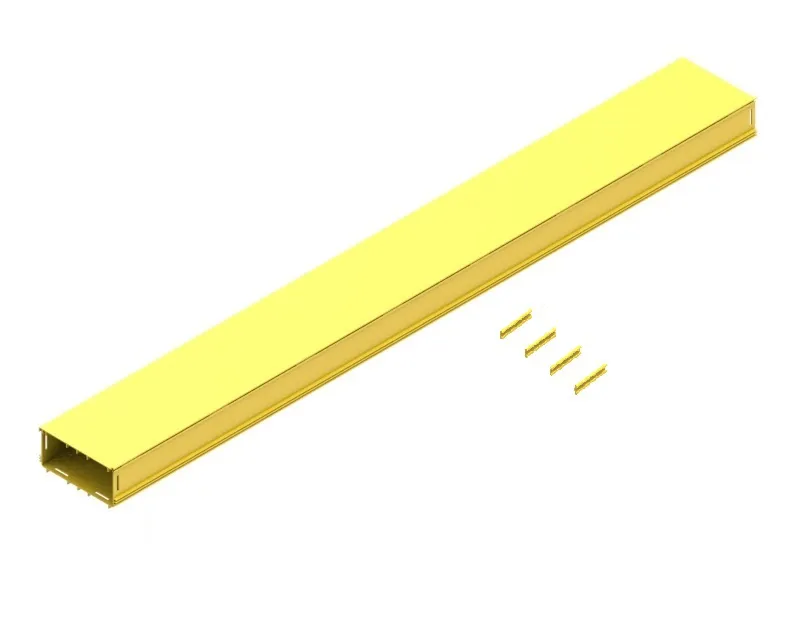

220mm Duct & Lid Duct System

 0,00

• Includes cover (Part No: TC 1279-22)
• Clips straight into joiner
• Tough, fire retardant material
• Joiners (Part No’s: TC1279-25, Telstra No: 035300515 or TC1279-250A); available separately.
• Purchase by the unit

Out of stock

SKU: TC1279-21A Categories: , , Brand:

Description

The 220mm duct carries up to 800 pigtails or patch cords (Ø3mm) to a depth of 50mm, without causing excess stress on them, during the removal processes. This duct comes complete with a lid and is made of tough Noryl plastic with a non-halogen fire retardant. It connects to other 220mm duct sections and various bends, adapters etc., using joiner (Part No: TC1279-25, Telstra No: 035300515). Alternatively, a slotless joiner (Part No: TC1279-250A) can be used.

Attachments

Product features

  • ETIM Code: EC000047
  • ETIM Class: Cable tray
  • Height: 115 mm
  • Width: 240 mm
  • Material thickness: 3 Millimetre
  • Length: 2000 Millimetre
  • Working length: 2000 Millimetre
  • Usable cross section: 21116 Square millimetre
  • With cover: Yes
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Straight duct length
  • Type of connection: Click in mounting
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Material quality: Other
  • Surface protection: Untreated
  • Colour: Yellow
  • RAL-number: 1026
  • Weight: 4.88 kg
  • Possible support spacing: 1 - 1.5 Metre
  • Safe working load according to IEC 61537 with support spacing 1.5 m: 350 Newton per metre
  • Variant: yellow
  • Depth: 2000 mm
  • Working temperature: -20 - 70 Degrees celsius

Description

The 220mm duct carries up to 800 pigtails or patch cords (Ø3mm) to a depth of 50mm, without causing excess stress on them, during the removal processes. This duct comes complete with a lid and is made of tough Noryl plastic with a non-halogen fire retardant. It connects to other 220mm duct sections and various bends, adapters etc., using joiner (Part No: TC1279-25, Telstra No: 035300515). Alternatively, a slotless joiner (Part No: TC1279-250A) can be used.
