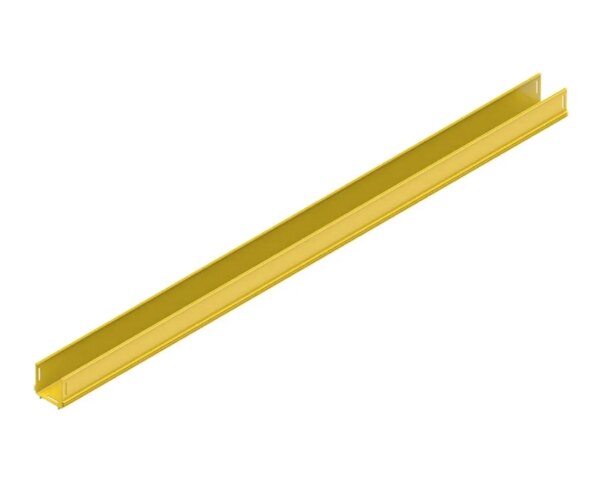

100mm Extrusion Duct Sys.
100mm Extrusion Duct Sys.

100mm Extrusion Duct Sys.

€ 0,00

• Clips straight into joiner
• Tough, fire retardant material
• Joiners (Part No: TC1279‐27; Telstra: S 353/00514 or Part No: TC1279‐248A); available separately
• Purchase by the unit

1 in stock

SKU: TC1279-23 Categories: , ,

Description

The duct is made of tough Noryl plastic with a non ‐ halogen fire retardent. The duct connects to other duct sections and various bends, adapters, etc, using either: a standard joiner (Part No: TC1279‐27: Telstra S 353/00514) or a slotless joiner (Part No: TC1279‐248A); which are available separately. A 100mm duct carries up to 400 x 3mm dia optical fibre cords to a depth of 50mm, without causing excessive crushing or stress on them. This is the maximum recommended number of optical fibre cords for 100mm duct

Product features

  • ETIM Code: EC000047
  • ETIM Class: Cable tray
  • Height: 105 mm
  • Width: 120 mm
  • Material thickness: 3 Millimetre
  • Length: 2000 Millimetre
  • Working length: 2000 Millimetre
  • Usable cross section: 8836 Square millimetre
  • With cover: No
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Straight duct length
  • Type of connection: Click in mounting
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Material quality: Other
  • Surface protection: Untreated
  • Colour: Yellow
  • RAL-number: 1026
  • Weight: 2.01 kg
  • Possible support spacing: 1 - 1.5 Metre
  • Safe working load according to IEC 61537 with support spacing 1.5 m: 350 Newton per metre
  • Variant: yellow
  • Depth: 2000 mm
  • Working temperature: -20 - 70 Degrees celsius

Description

The duct is made of tough Noryl plastic with a non ‐ halogen fire retardent. The duct connects to other duct sections and various bends, adapters, etc, using either: a standard joiner (Part No: TC1279‐27: Telstra S 353/00514) or a slotless joiner (Part No: TC1279‐248A); which are available separately. A 100mm duct carries up to 400 x 3mm dia optical fibre cords to a depth of 50mm, without causing excessive crushing or stress on them. This is the maximum recommended number of optical fibre cords for 100mm duct
