Adaptor 100x100mm to 50x50mm

Adaptor 100X100 To 50X50

€ 0,00

• Clips straight into joiner

Out of stock

SKU: TC1279-240A Categories: , , Brand:

Description

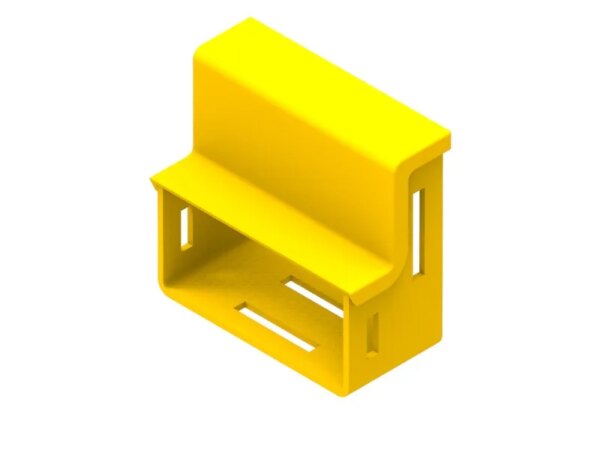

The 100 x 100mm to 100 x 50mm adaptor is used to provide an in-line adaptor between 100 x 100mm duct and 100 x 50mm straight ducting and components. The adaptor requires a joiner at both interfaces (100 x 50mm is Part No.TC1279-226 and 100 x 100mm is Part No TC1279-27 or TC1279-248A). This produces smooth & strong joints. Joiners, available separately.

Attachments

Product features

  • ETIM Code: EC001007
  • ETIM Class: Reducing piece for cable tray
  • Suitable for cable tray height: 100 Millimetre
  • Width (big): 100 Millimetre
  • Width (small): 50 Millimetre
  • Construction type: Reducing symmetrical
  • Model: Reducers
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Colour: Yellow
  • Width: 100 mm
  • Height: 50 mm
  • Depth: 100 mm
  • Weight: 0.1 kg
  • Stainless steel, pickled: No
  • Material quality: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 100 x 100mm to 100 x 50mm adaptor is used to provide an in-line adaptor between 100 x 100mm duct and 100 x 50mm straight ducting and components. The adaptor requires a joiner at both interfaces (100 x 50mm is Part No.TC1279-226 and 100 x 100mm is Part No TC1279-27 or TC1279-248A). This produces smooth & strong joints. Joiners, available separately.
