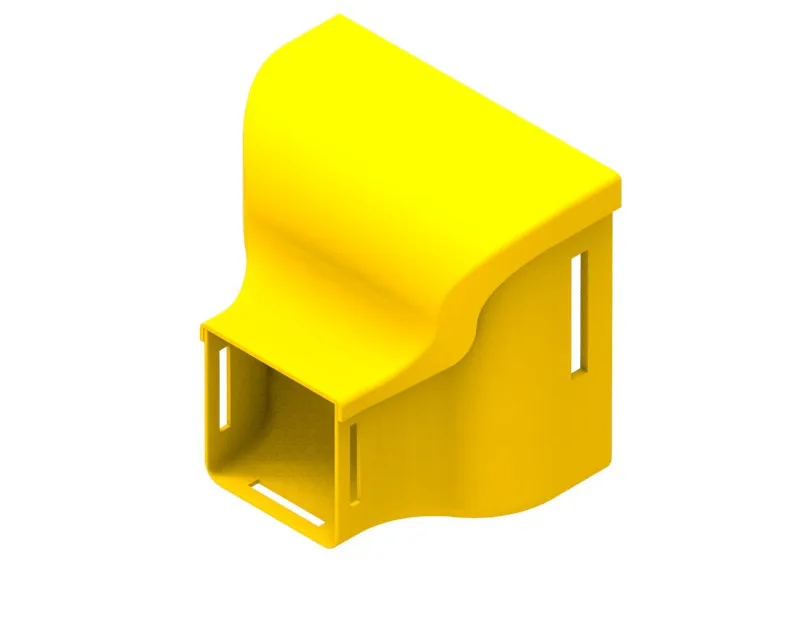

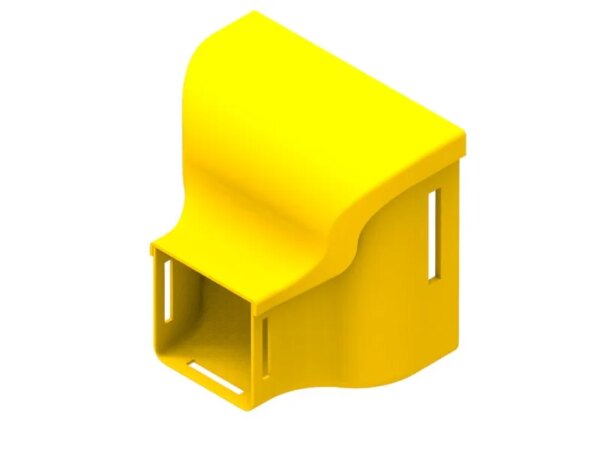

Adaptor 100/50mm Assembly

 0,00

• Includes cover (Part No: TC 1279-90)
• Clips straight into joiner
• Tough, fire retardant material
• Joiners (Part No’s: TC1279-27 & TC1279-73, Telstra No’s: 035300514 & 035300788 or TC1279-248A); available separately
• Purchase by the unit

Out of stock

SKU: TC1279-91A Categories: , , Brand:

Description

The 100mm to 50mm adaptor is used to provide a reducing connection between standard 100mm and 50mm straight ducting, tee pieces or other standard duct components. The adaptor requires standard joiners (Part No’s: TC1279-27 & TC1279-73, Telstra No: 035300514 & 035300788), or the 100mm slotless joiner (Part No: TC1279-248A) at the 100mm & 50mm interfaces, which produces smooth & strong joints. The joiners are available separately.

Attachments

Product features

  • ETIM Code: EC001007
  • ETIM Class: Reducing piece for cable tray
  • Suitable for cable tray height: 100 Millimetre
  • Width (big): 100 Millimetre
  • Width (small): 50 Millimetre
  • Construction type: Reducing symmetrical
  • Model: Reducers
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Colour: Yellow
  • Width: 110 mm
  • Height: 82 mm
  • Depth: 105 mm
  • Weight: 0.06 kg
  • RAL-number: 1026
  • Stainless steel, pickled: No
  • Material quality: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 100mm to 50mm adaptor is used to provide a reducing connection between standard 100mm and 50mm straight ducting, tee pieces or other standard duct components. The adaptor requires standard joiners (Part No’s: TC1279-27 & TC1279-73, Telstra No: 035300514 & 035300788), or the 100mm slotless joiner (Part No: TC1279-248A) at the 100mm & 50mm interfaces, which produces smooth & strong joints. The joiners are available separately.

Attachments
