Description

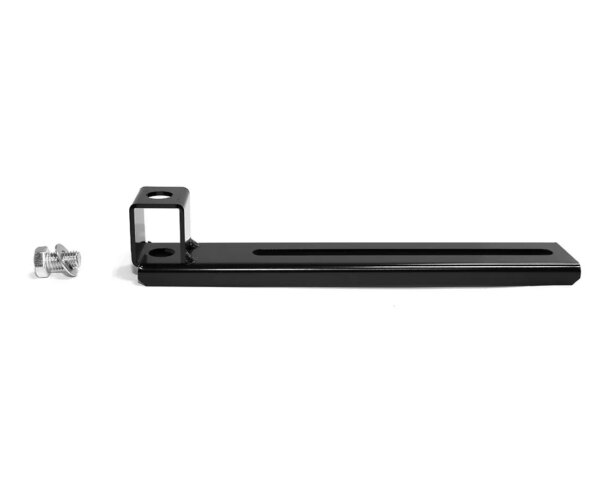

This Side Mounting Bracket is used to install & secure 300mm duct (Part No: TC1279‐275A) in a straight run. This Bracket is typically spaced at 0.9 metres or less, to make a rigid & strong installation. The duct is mounted in the Duct Mounting Bracket (Part No: TC1279‐297A); which in turn is bolted to the Side Mounting Bracket, using the M12 (1/2”) x 20mm long hex bolt & washer included. The Side Mounting Bracket is secured, at the desired height, to 5/8” UNC threaded rod, using 2 x 5/8 “ UNC hex. nuts & washers. Both the 5/8” UNC threaded rod x 300mm, 760mm or 1000mm long (Part No’s: 93×5‐8×300; 93×5‐8×760 or 93×5‐8×1000); and 5/8” UNC hex nuts & washers (Part No: TC1279‐120KIT); are available separately.
