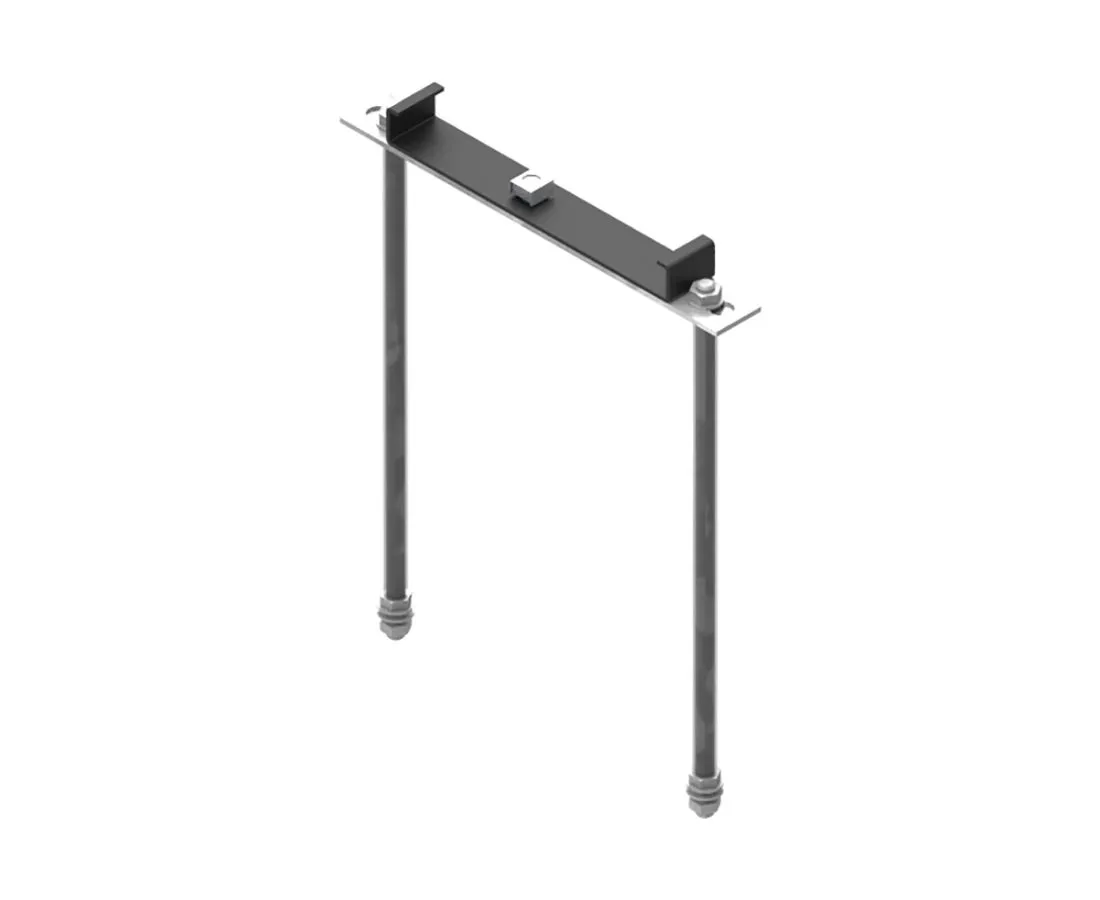

220mm Suspension Kit Incl. 12MM Threaded Rods, Prot. & Nuts

220mm Suspension Kit Incl. 12mm Threaded Rods, Prot. & Nuts

€ 0,00

• Simple 2 x M12 threaded rod suspension assembly to existing steelwork
• Plastic tubes supplied, to protect the threaded rods from damage
• Robust & economical
• Includes: nuts & washers; straight bracket (Part No: TC1279-106); 220mm duct Support bracket (Part No: TC1279-13); nut, bolt & all washers

Out of stock

SKU: TC1279-106KITA Categories: , , Brand:

Description

The suspension mounting bracket Kit is used to attach either 220mm (or 100mm) plastic duct to existing steelwork, from above. It consists of: 2 x M12 threaded rods (Part No: 93 x 12 x 400 ‐ M12 x 400mm long) with a straight bracket (Part No: TC1279‐106) and fasteners, which enables fitting of a duct ‐ mounting bracket (Part No: TC1279‐13) to the straight bracket. Plastic protection tubes are supplied to prevent entanglement of optical fibre cords during installation; and to protect the threaded rod from damage.

Attachments

Product features

  • ETIM Code: EC001005
  • ETIM Class: Mounting material for cable support system
  • Material: Steel
  • Material quality: Other
  • Surface protection: Hot-dip galvanised
  • Colour: Stainless steel
  • Width: 50 mm
  • Height: 40 mm
  • Depth: 400 mm
  • Weight: 1 kg
  • Stainless steel, pickled: No
  • Model: Mounting Solutions
  • Working temperature: -20 - 70 Degrees celsius

Description

The suspension mounting bracket Kit is used to attach either 220mm (or 100mm) plastic duct to existing steelwork, from above. It consists of: 2 x M12 threaded rods (Part No: 93 x 12 x 400 ‐ M12 x 400mm long) with a straight bracket (Part No: TC1279‐106) and fasteners, which enables fitting of a duct ‐ mounting bracket (Part No: TC1279‐13) to the straight bracket. Plastic protection tubes are supplied to prevent entanglement of optical fibre cords during installation; and to protect the threaded rod from damage.

Attachments
