220mm Mounting Bracket & Bolt
220mm Mounting Bracket & Bolt

220mm Mounting Bracket & Bolt

€ 0,00

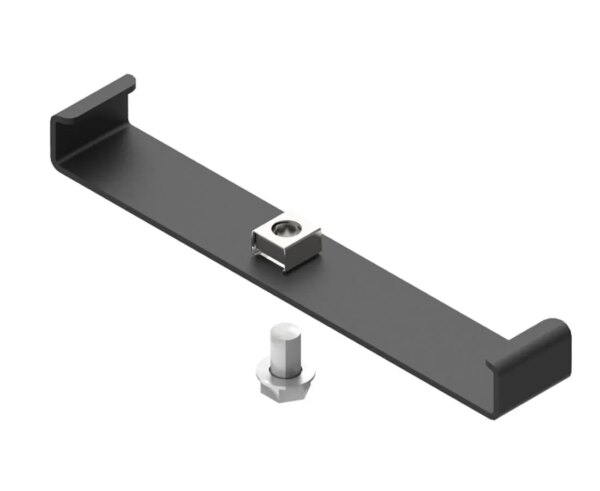

This assembly consists of a standard 220mm duct Support bracket, with a captive M12 nut and bolt set…

1 in stock

SKU: TC1279-15A Categories: , ,

Description

This assembly consists of a standard 220mm duct Support bracket, with a captive M12 nut and bolt set; that enables the duct Support bracket to be bolted to any other mounting bracket. This assembly is used where the duct is directly mounted to flat brack ets with 13mm (1/2 inch clearance) dia holes.

Attachments

Product features

  • ETIM Code: EC001005
  • ETIM Class: Mounting material for cable support system
  • Material: Steel
  • Material quality: Other
  • Surface protection: Hot-dip galvanised
  • Colour: Stainless steel
  • Width: 30 mm
  • Height: 40 mm
  • Depth: 240 mm
  • Weight: 0.4 kg
  • Stainless steel, pickled: No
  • Model: Mounting Solutions
  • Working temperature: -20 - 70 Degrees celsius

Description

This assembly consists of a standard 220mm duct Support bracket, with a captive M12 nut and bolt set; that enables the duct Support bracket to be bolted to any other mounting bracket. This assembly is used where the duct is directly mounted to flat brack ets with 13mm (1/2 inch clearance) dia holes.

Attachments
