100mm Suspension Kit Incl. 12MM Threaded Rods, Prot. & Nuts

100mm Suspension Kit Incl. 12mm Threaded Rods, Prot. & Nuts

€ 0,00

• Simple 2 x M12 threaded rod suspension assembly to existing steelwork
• Plastic tubes supplied, to protect the threaded rods from damage
• Robust & economical

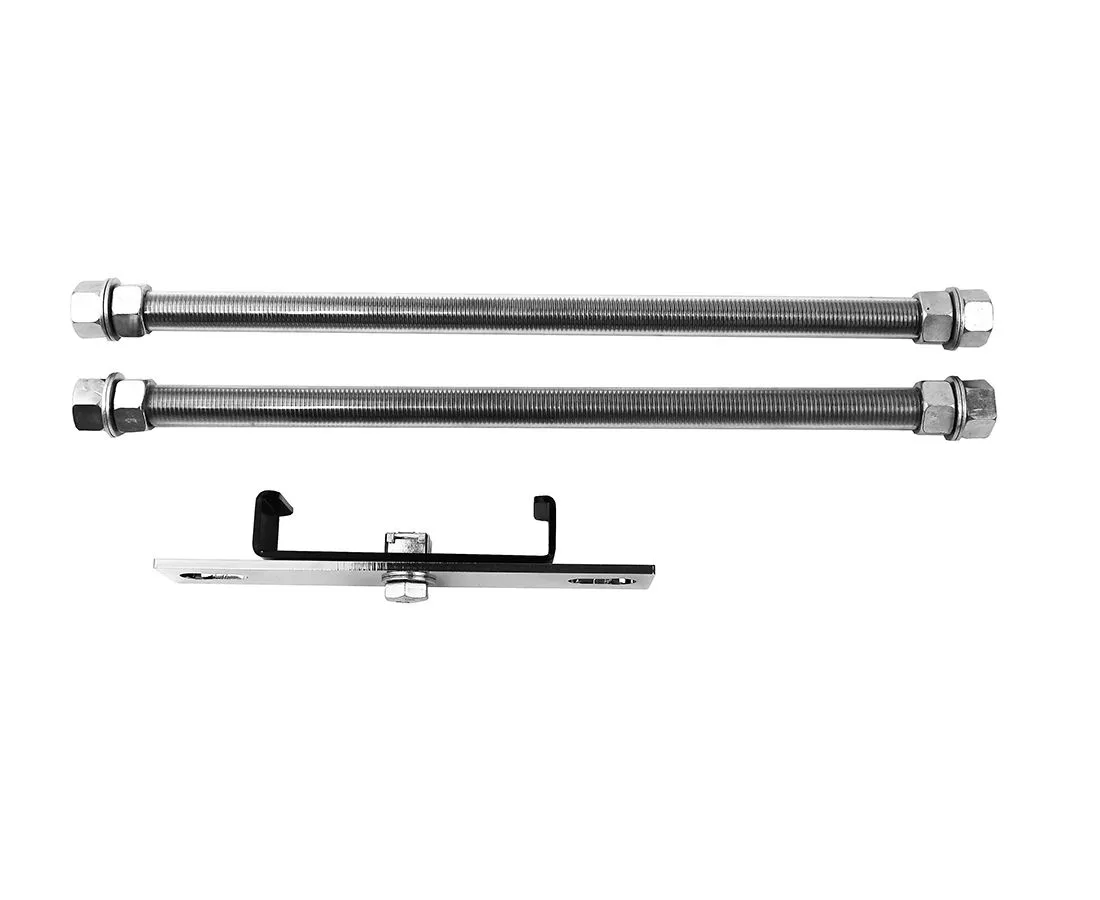

• Includes: 2 off – M12 rods, nuts & washers; straight bracket; 100mm duct Support bracket; nut, bolt & all washers

1 in stock

SKU: TC1279-107KITA Categories: , ,

Description

The suspension mounting bracket Kit is used to attach 100mm plastic duct to existing steelwork, from above. It is a straight bracket (Part No: TC1279‐107) with 2 x M12 threaded rods and fasteners (Part No: 93 x 12 x 400 – M12 x 400mm long) to enable fitting of a duct ‐ mounting bracket (Part No: TC1279‐14) from the building ceiling or overhead steelwork. Plastic protection tubes are supplied to prevent entanglement of optical fibre cords during installation; and to protect the threaded rod from damage.

Attachments

Product features

  • ETIM Code: EC001005
  • ETIM Class: Mounting material for cable support system
  • Material: Steel
  • Material quality: Other
  • Surface protection: Hot-dip galvanised
  • Colour: Stainless steel
  • Width: 40 mm
  • Height: 35 mm
  • Depth: 405 mm
  • Weight: 1.2 kg
  • Stainless steel, pickled: No
  • Model: Mounting Solutions
  • Working temperature: -20 - 70 Degrees celsius

Description

The suspension mounting bracket Kit is used to attach 100mm plastic duct to existing steelwork, from above. It is a straight bracket (Part No: TC1279‐107) with 2 x M12 threaded rods and fasteners (Part No: 93 x 12 x 400 – M12 x 400mm long) to enable fitting of a duct ‐ mounting bracket (Part No: TC1279‐14) from the building ceiling or overhead steelwork. Plastic protection tubes are supplied to prevent entanglement of optical fibre cords during installation; and to protect the threaded rod from damage.

Attachments
