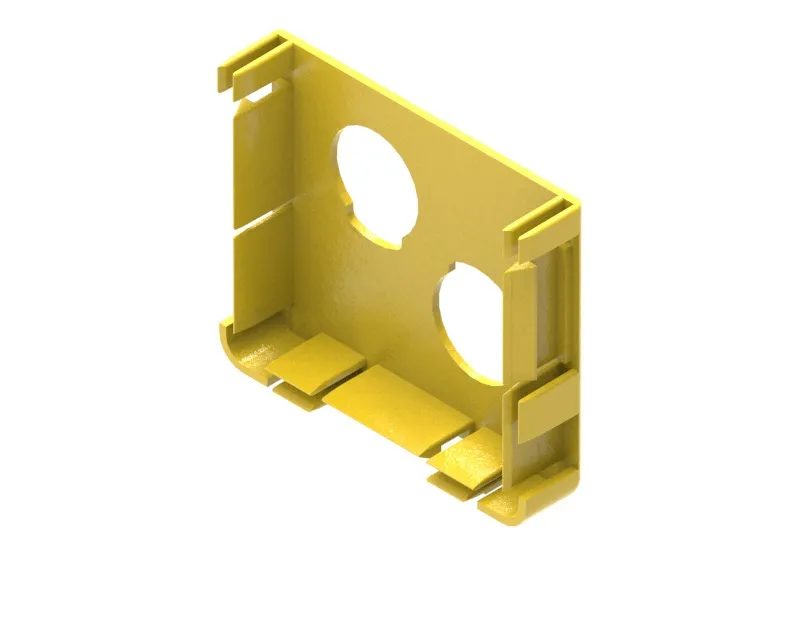

Duct End Cover 100mm

 0,00

• No joiner needed
• Clips straight into (100×100)mm duct end
• Two Ø32mm holes allow direct fitting of Ø32mm ID/Ø38mm OD tube (Part No: TC1279-68)
• Tough, fire retardant material
• Purchase by the unit

1 in stock

SKU: TC1279-57B Categories: , ,

Description

The duct end cover is used for sealing the open end of a standard (100×100)mm straight duct. It snaps simply into the duct slots and can be removed with a screwdriver should the system need extending. It has two Ø32mm holes to allow direct fitting of Ø32mm ID/Ø38mm OD tube (Part No: TC1279-68), which is available separately.

Attachments

Product features

  • ETIM Code: EC001574
  • ETIM Class: End piece for cable tray
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 100 Millimetre
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Material quality: Other
  • Surface protection: Untreated
  • Colour: Yellow
  • RAL-number: 1026
  • Variant: yellow
  • Width: 95 mm
  • Height: 25 mm
  • Depth: 110 mm
  • Weight: 0.056 kg
  • Model: End Caps
  • Working temperature: -20 - 70 Degrees celsius

Description

The duct end cover is used for sealing the open end of a standard (100×100)mm straight duct. It snaps simply into the duct slots and can be removed with a screwdriver should the system need extending. It has two Ø32mm holes to allow direct fitting of Ø32mm ID/Ø38mm OD tube (Part No: TC1279-68), which is available separately.

Attachments
