220mm Endcap With 2X88mm Adptr

220mm Endcap With 2X88mm Adptr

€ 0,00

• No joiner needed
• Clips straight into 220mm duct end or a 90°, down elbow (Part No: TC1279‐454A); available separately
• Accepts standard 2 x Ø75mm ID / Ø88mm OD, convoluted tube (Part No: TC1279‐458); available separately
• Tough, fire retardant material
• Purchase by the unit

Out of stock

SKU: TC1279-457 Categories: , , Brand:

Description

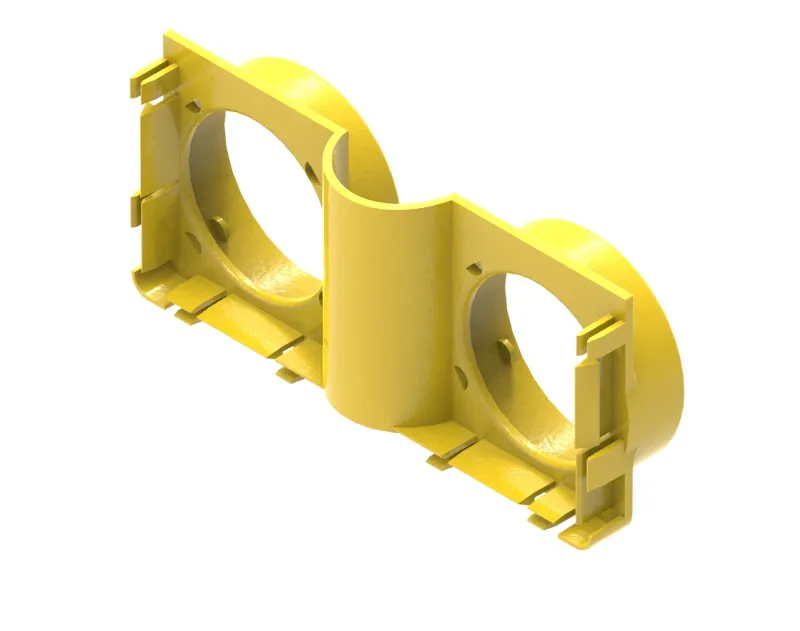

The duct end cover is provided with two large size Ø holes and connection, that allows fitting of two large size convoluted, flexible tubes. The tubes are Ø75mm ID / Ø88mm OD (Part No: TC1279‐458 – 2 metres long). The convoluted tube allows optical fibre cords to be dropped off from the 220mm X 100mm duct to lower transmission equipment. The end cover snaps simply into the duct slots of a 90°, down elbow (Part No: TC1279‐454A) and can be removed with a screwdriver should the system need extending.

Attachments

Product features

  • ETIM Code: EC001574
  • ETIM Class: End piece for cable tray
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 220 Millimetre
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Material quality: Other
  • Surface protection: Untreated
  • Colour: Yellow
  • RAL-number: 1026
  • Variant: yellow
  • Width: 105 mm
  • Height: 50 mm
  • Depth: 235 mm
  • Weight: 0.155 kg
  • Model: End Caps
  • Working temperature: -20 - 70 Degrees celsius

Description

The duct end cover is provided with two large size Ø holes and connection, that allows fitting of two large size convoluted, flexible tubes. The tubes are Ø75mm ID / Ø88mm OD (Part No: TC1279‐458 – 2 metres long). The convoluted tube allows optical fibre cords to be dropped off from the 220mm X 100mm duct to lower transmission equipment. The end cover snaps simply into the duct slots of a 90°, down elbow (Part No: TC1279‐454A) and can be removed with a screwdriver should the system need extending.

Attachments
