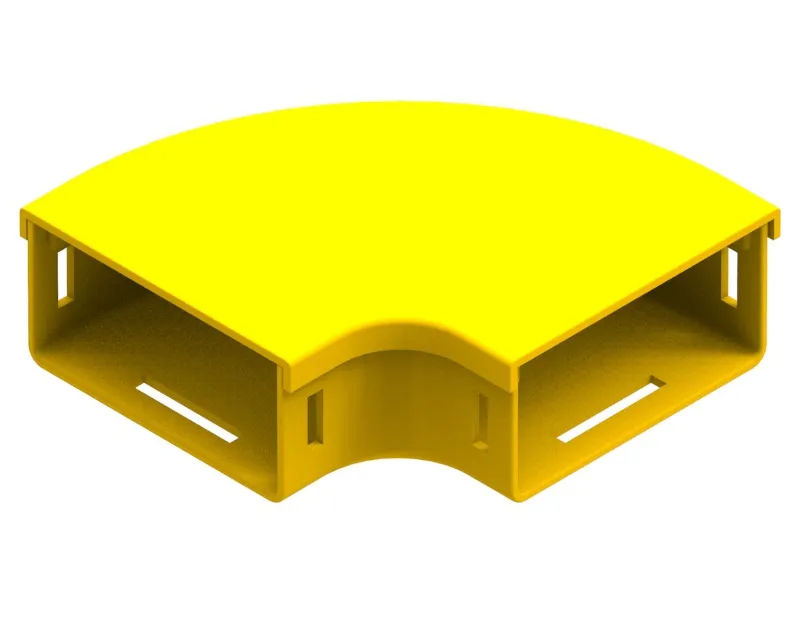

Elbow Horizontal 100X50mm

Elbow Horizontal 100X50mm

€ 0,00

• Includes cover (Part No: TC 1279-268)
• Clips straight into joiner
• Tough, fire retardant material
• Joiners (Part No: TC1279-226); available separately
• Purchase by the unit

Out of stock

SKU: TC1279-269A Categories: , , Brand:

Description

The 100x50mm elbow assembly is used to provide a horizontal right-angled bend (right or left hand) with standard 100x50mm straight ducting. It requires a standard joiner (Part No: TC1279-226) at each interface, which provides a smooth & strong joint. Joiners; available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Horizontal
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 50 Millimetre
  • Suitable for cable tray width: 50 Millimetre
  • Material thickness: 2 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 155 mm
  • Height: 52 mm
  • Depth: 155 mm
  • Weight: 0.15 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 100x50mm elbow assembly is used to provide a horizontal right-angled bend (right or left hand) with standard 100x50mm straight ducting. It requires a standard joiner (Part No: TC1279-226) at each interface, which provides a smooth & strong joint. Joiners; available separately.
