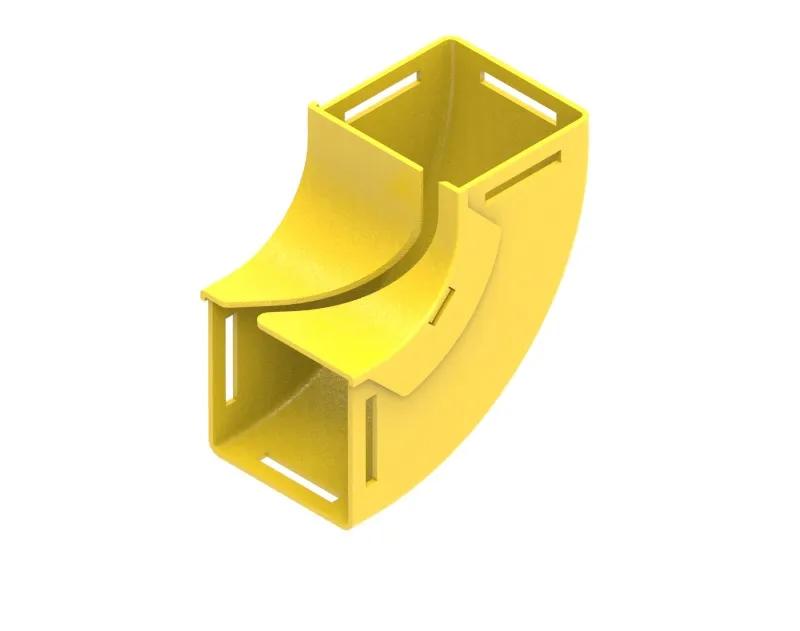

Elbow Assembly Up 90° Internal Slot 50mm Duct

 0,00

• Clips straight into joiner
• Tough, fire retardant material
• Joiners,(Part No: TC1279-73); available separately.
• Purchase by the unit

1 in stock

SKU: TC1279-143R Categories: , ,

Description

The 50mm up elbow assembly is used to provide a vertical right – angled bend with standard 50mm duct. It provides a simple method for directing optical fibre cords between different levels. It features an internal slot, so that new fibre cords can be installed within the elbow and existing fibre cords removed where necessary. It uses standard joiners (Part No: TC1279-73); which provide smooth & strong joints.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 90°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 50 Millimetre
  • Suitable for cable tray width: 50 Millimetre
  • Material thickness: 2 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 91 mm
  • Height: 91 mm
  • Depth: 60 mm
  • Weight: 0.04 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 50mm up elbow assembly is used to provide a vertical right – angled bend with standard 50mm duct. It provides a simple method for directing optical fibre cords between different levels. It features an internal slot, so that new fibre cords can be installed within the elbow and existing fibre cords removed where necessary. It uses standard joiners (Part No: TC1279-73); which provide smooth & strong joints.

Attachments
