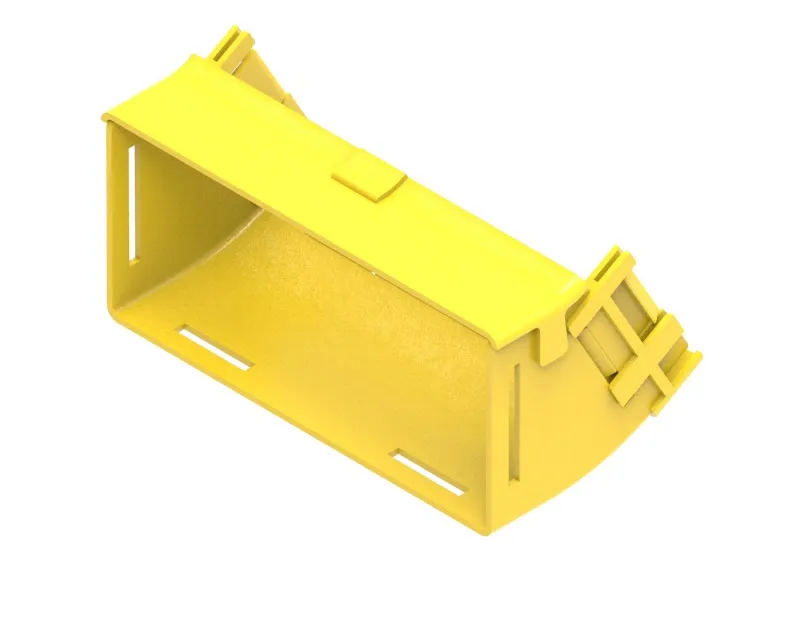

Elbow Assembly 30° Up

Elbow Assembly 30° Up

€ 0,00

Provides easy access for fibre cords and allows fibre cords to be retrofitted
• Removable cover supplied
• A special, glued-in joiner provides a smooth transition for optical fibre cords
• Clips straight into either a: standard joiner (Part No. TC1279-25) or a slotless joiner (Part No: TC1279-250A; which are available separately
• Tough, fire retardant material
• Purchase by the unit

1 in stock

SKU: TC1279-125-30A Categories: , ,

Description

The 30° up elbow is a 220mm angled lead off with an internal lid, so that new optical fibre cords can be installed within the elbow and existing fibre cords removed, where necessary. This is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 220mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner (Part No. TC1279-25) or a slotless joiner (Part No: TC1279-250A); that are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Change of direction: Vertically rising
  • Angle: 30°
  • Construction type: Bend rigid
  • Bend model: Smooth bend
  • For connection with screws: No
  • For screwless connection: Yes
  • With cover: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 220 Millimetre
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 140 mm
  • Height: 105 mm
  • Depth: 230 mm
  • Weight: 0.246 kg
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

The 30° up elbow is a 220mm angled lead off with an internal lid, so that new optical fibre cords can be installed within the elbow and existing fibre cords removed, where necessary. This is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 220mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner (Part No. TC1279-25) or a slotless joiner (Part No: TC1279-250A); that are available separately.
