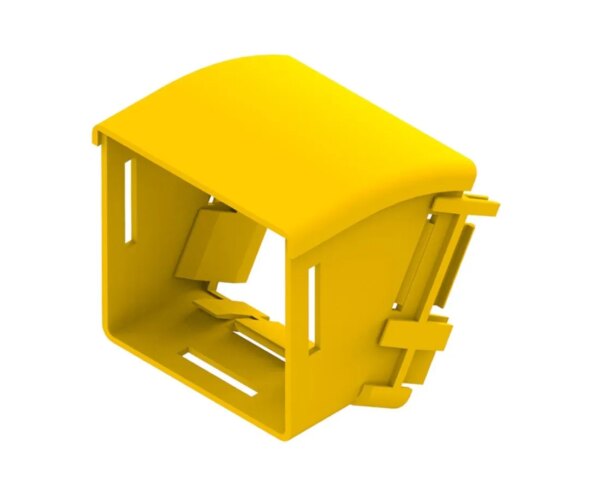

Elbow Assembly 30° Down 100mm Duct

Elbow Assembly 30° Down 100mm Duct

€ 0,00

Provides easy access for optical fibre cords, and allows optical fibre cords to be retrofitted
• Removable cover supplied
• A special, glued-in joiner provides a smooth transition for optical fibre cords
• Clips straight into either a: standard joiner (Part No. TC1279-27) or a slotless joiner (Part No: TC1279-248A); which are available separately
• Tough, fire retardant material
• Purchase by the unit

1 in stock

SKU: TC1279-111-30A Categories: , ,

Description

This 10-mm down elbow is a 30° angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 100-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner (Part No. TC1279-27) or a slotless joiner (Part No: TC1279-248A); that are available separately.

Attachments

Product features

  • ETIM Code: EC002400
  • ETIM Class: Bend for cable tray
  • Construction type: Bend rigid
  • For connection with screws: No
  • For screwless connection: Yes
  • Inner radius: 30 Millimetre
  • Suitable for cable tray height: 100 Millimetre
  • Suitable for cable tray width: 100 Millimetre
  • NATO-mounting holes: No
  • Model: Elbows
  • Suitable for circuit integrity: No
  • Material: Plastic
  • Stainless steel, pickled: No
  • Colour: Yellow
  • RAL-number: 1026
  • Width: 113 mm
  • Height: 105 mm
  • Depth: 112 mm
  • Weight: 0.16 kg
  • Change of direction: Vertically descending
  • Angle: 30°
  • Bend model: Smooth bend
  • With cover: Yes
  • Material thickness: 3 Millimetre
  • Side perforation: No
  • Bottom perforation: No
  • Material quality: Other
  • Surface protection: Other
  • Variant: yellow
  • Working temperature: -20 - 70 Degrees celsius

Description

This 10-mm down elbow is a 30° angled lead off with an external lid, so that new optical fibre cords can be installed within the elbow and existing optical fibre cords removed, where necessary. It is usually used where an angular duct feed off or an alignment adjustment is needed. There are two 100-mm outlets. One is equipped with a glued-in, modified joiner. (The special joiner provides a smooth internal curve for optical fibre cords.) The other side uses either a: standard joiner (Part No. TC1279-27) or a slotless joiner (Part No: TC1279-248A); that are available separately.
